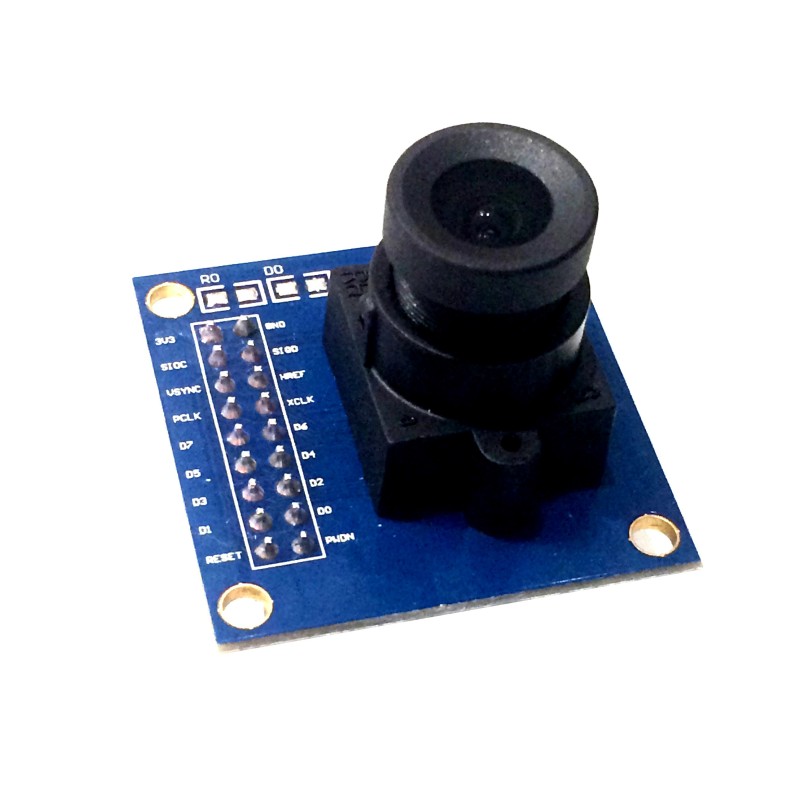

OV7670 VGA Camera Module for Arduino

This OV7670 VGA Camera Module for Arduino gives your Arduino projects the ability to see!

Specifications:

• Photosensitive array: 640X480
• IO Voltage: 2.5V to 3.0V (internal LDO for nuclear power 1.8V)
• Power operation: 60mW/15fpsVGAYUV
• Sleep: <20μA
• Temperature Operating: -30 ℃ to 70 ℃
• Stable: 0 ℃ to 50 ℃
• Output Formats (8): YUV/YCbCr4: 2:2 RGB565/555/444 GRB4: 2:2 Raw RGB Data
• Optical size: 1/6 "
• FOV: 25 °
• Maximum Zhen rate: 30fps VGA
• Sensitivity: 1.3V / (Lux-sec)
• SNR: 46 dB
• Dynamic range: 52 dB
• View Mode: Progressive
• Electronic Exposure: 1 line to 510 line
• Pixel Size: 3.6μm x 3.6μm
• Dark current: 12 mV / s at 60 ℃

Features:

• High sensitivity suitable for illumination applications
• Low voltage suitable for embedded applications
• Standard SCCB interface compatible with I2C interface
• RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format
• Supports VGA, CIF, and from a variety of sizes CIF to 40x30
• VarioPixel sub-sampling mode
• ISP has a compensation function to eliminate noise and dead pixels
• Support for image scaling
• Compensation for loss of optical lens
• 50/60Hz automatic detection
• Saturation automatically adjust (UV adjustment)
• Automatic adjust edge enhancement
• Automatic adjust the noise reduction
• Automatic functions include:
  • automatic exposure control
  • automatic gain control
  • automatic white balance
  • automatic elimination of light stripes
  • automatic black level calibration
  • image quality control including
    • color saturation
    • hue
    • gamma
    • sharpness

Click here to download the Arduino Sample Library.
