PWM to Analog Converter Module
$12.99
✅SHIPS TODAY

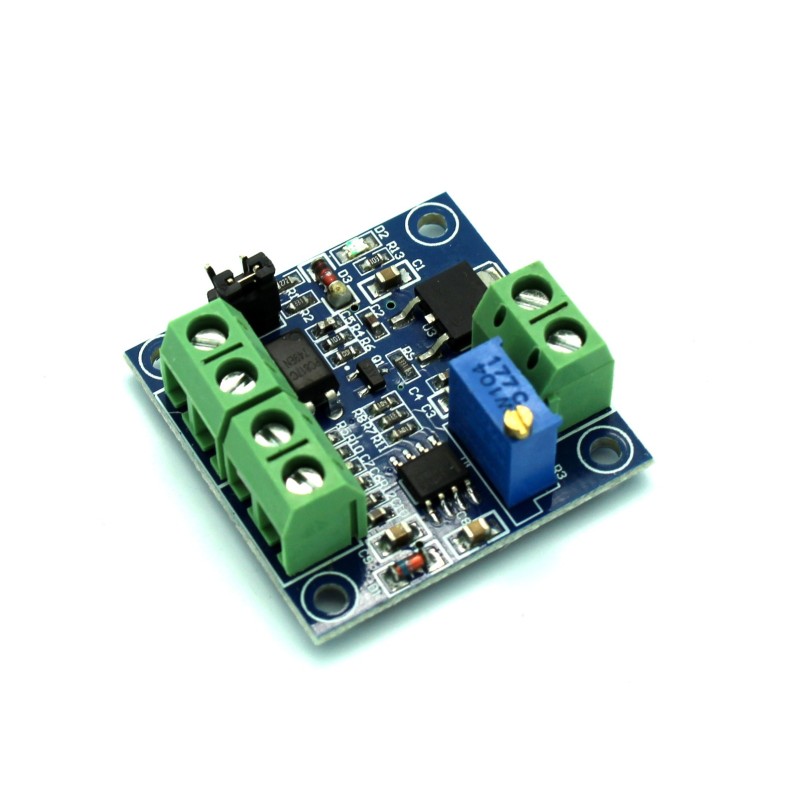

Convert a Digital PWM signal into an analog output using this PWM to Analog Converter Module. Use this module to output an analog signal from a digital I/O pin.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- PWM to Analog Converter Module
- Adjust the duty cycle of the PWM signal to change the analog voltage output.
- Input pulse level can be 5V, 12V, 24V
- Analog Voltage Output Range: 0 to 10V DC
- Useful for using a digital pin to control analog devices.
- Screw Terminal Pinout:
- VCC & GND: Power and ground for the converter module itself (12V to 30V on VCC)
- VOUT & GND: Output analog voltage and ground (0 to 10V on VOUT)
- PWM & GND: Input digital PWM signal and ground (connect to your microcontroller such as Arduino, Raspberry Pi, etc)
- Adjustable frequency to voltage ratio via onboard potentiometer
- Input level range of the PWM signal is selected by the onboard jumper
- PWM signal input level ranges:
- 4.5V-10V (suitable for 5V boards such as Arduino) this is the default jumper position as shown in the images above
- 12V-24V (suitable for PLC interfaces)
- Conversion range: 0% - 100% PWM duty cycle converted to 0 - 10V voltage
- Allowable error: 5%
- PWM signal receiving frequency range: 1kHz-3kHz
- Input to output ratio: 100Hz to 1V; 1KHz to 10V
- Can be calibrated using a meter to measure the output. The output voltage can be adjusted by adjusting the duty cycle and control accuracy can be controlled by adjusting the potentiometer.
