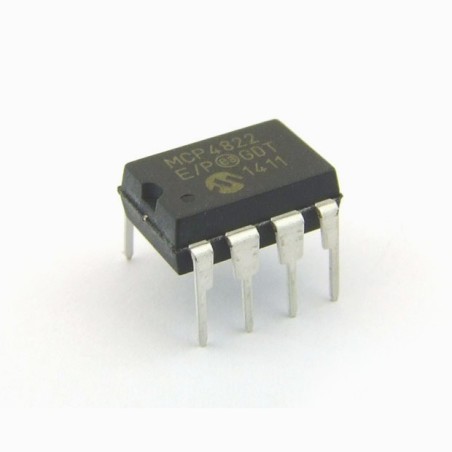

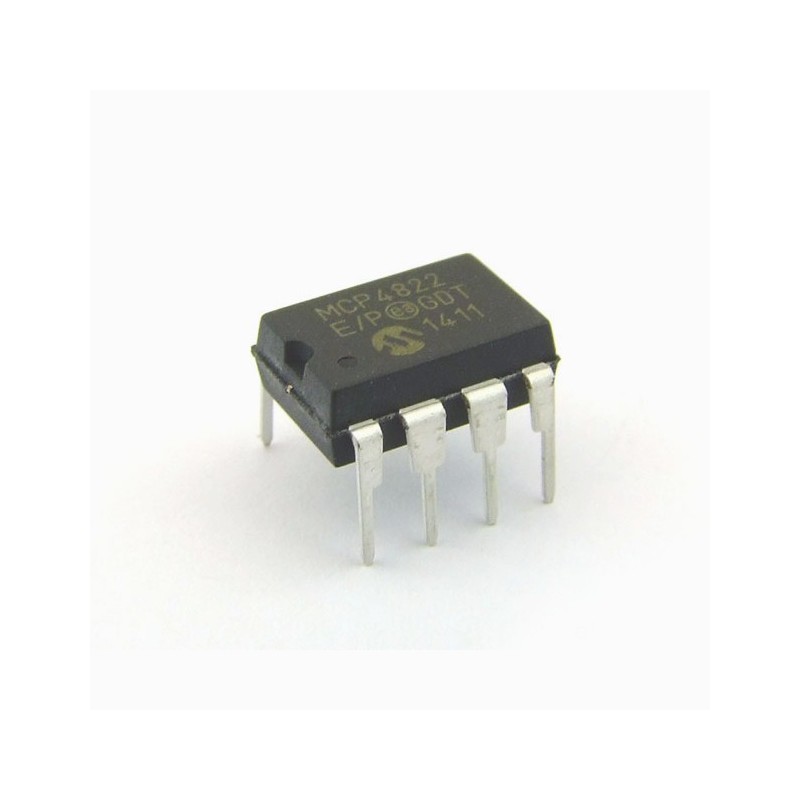

MCP4822 12 Bit DAC - SPI
$5.99
✅SHIPS TODAY
MCP4822 is a dual channel 12-bit Digital to Analog converter (DAC) with internal voltage reference. This device offers high accuracy and low power consumption. Uses SPI serial protocol.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- DAC (Digital to Analog Converter) Chip
- 12-bit Resolution
- Dual Channel Voltage Output
- 2.7V to 5.5V Operation
- Operating Current 415 µA (typ)
- Internal Voltage Reference 2.048V
- Selectable Unity or 2x Gain Output
- INL ±2 LSB (typ)
- DNL ±0.75 LSB (max)
- Output Settling Time 4.5 µs
- SPI Interface
- 8-pin PDIP
- Temperature Range -40°C to +125°C
- AEC-Q100 Grade 1 qualified
