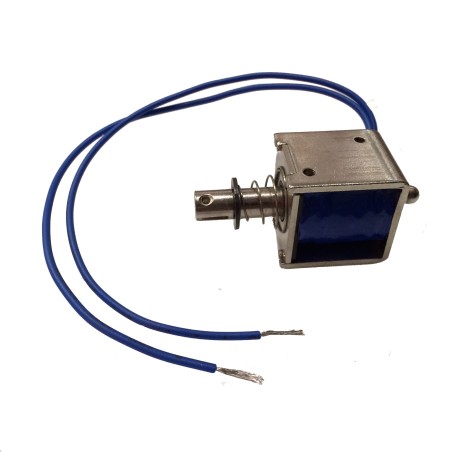

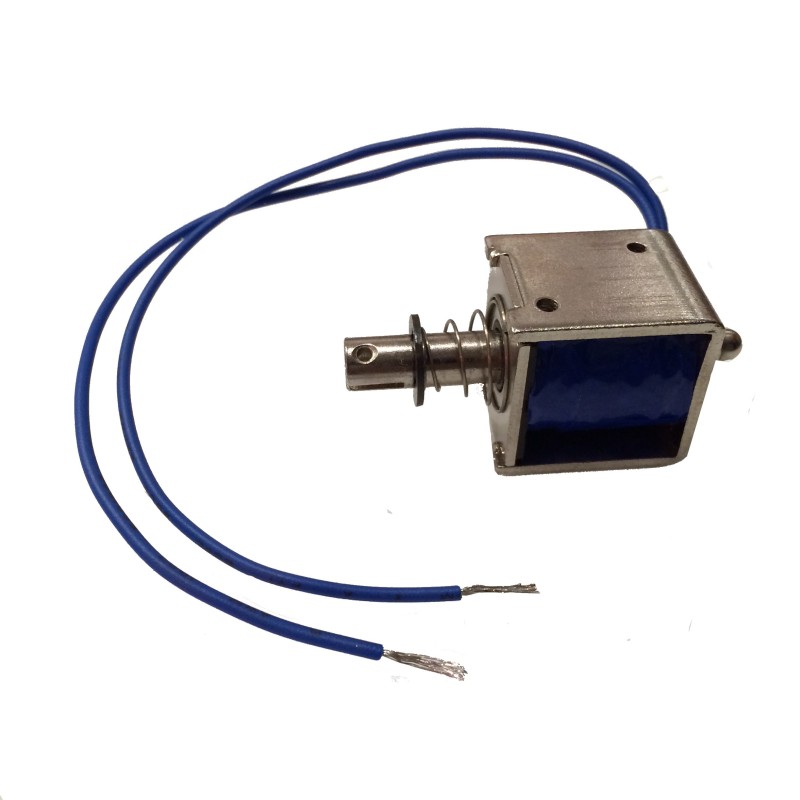

6V - 12V Solenoid
$12.49
✅SHIPS TODAY
This 6 to 12 Volt Solenoid contains an electromagnet that pushes out the plunger when 6V to 12V is applied. Useful for pushing buttons or switches and pulling objects. Great source of linear motion.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Push or pull using this 6V -12V solenoid. Apply a voltage from 6V to 12V to activate the electromagnet and push out the plunger. An inexpensive way to add linear motion to your projects!
Specifications:
- Operating Voltage: 6V - 12V DC
- Push - Pull Type
- Current: 2A
- Stroke: 10mm
- Force: 4.4 LBS , 2KG , 2N
- Dimensions:
- Overall (LxWxH): 2.2"x1"x0.9"
- Metal Frame: 1'' x 1'' x 0.9'' (26mm x 25mm x 22mm)
- Coil (LxD): 0.7'' x 0.7'' (19mm x 17mm)
- Plunger Diameter: 0.3"(7.4mm)
- Weight: 2.5oz
TS-855
