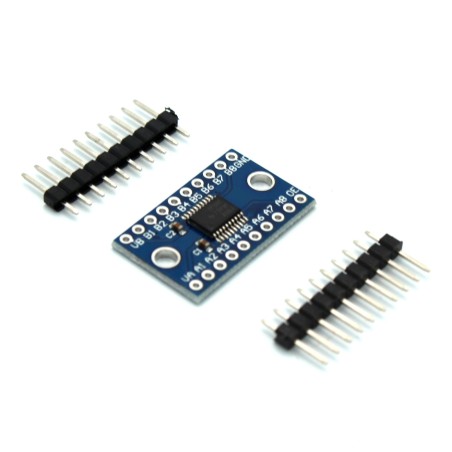

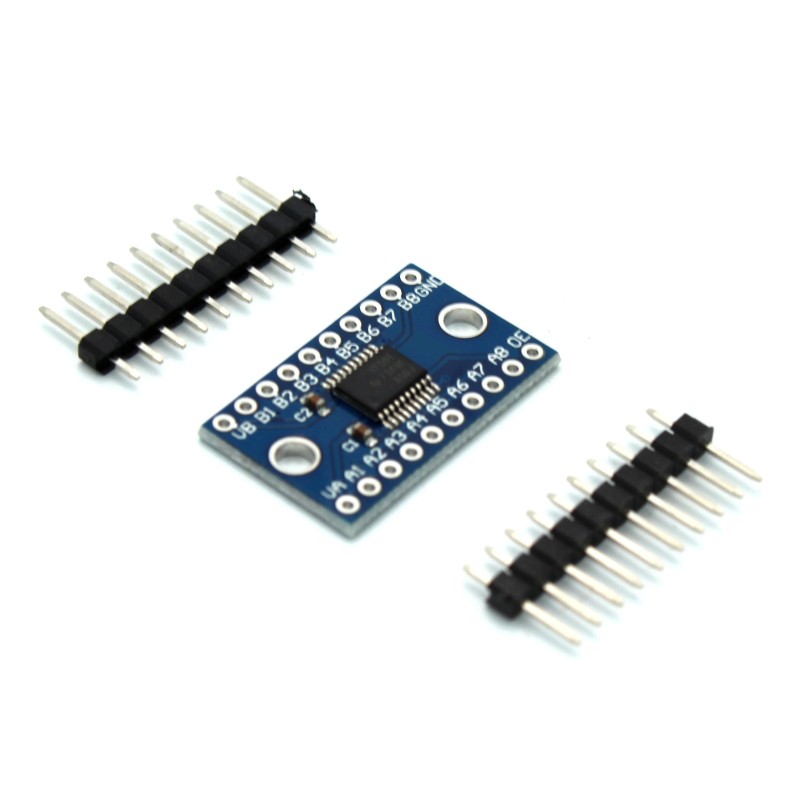

8-channel Bi-directional Logic Level Converter - TXB0108
$7.49
✅SHIPS TODAY
8 channel bidirectional logic level converter for connecting between 5V and 3.3V devices seamlessly with up to 8 channels in one!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Bi-directional logic level converter chip
- Automatic direction detection
- Works for communicating between 5V and 3.3V in both directions
- Also works for converting between any other voltages between 1.8V and 6V
- Acceptable In/Out Voltage Range: 1.8V to 6V
- Dimensions: 0.83 x 0.59 inches
- Chipset: TXB0108
- Example wiring for bidirectional 3.3V to 5V conversion:
- VA: 3.3V power +
- VB: 5V power +
- GND: Ground (-) from the two power supplies (3.3V and 5V power supplies )
- A1 to 3.3V pin (such as from Raspberry Pi)
- B1 to 5V pin (such as from Arduino)
- When A1 has a high 3.3V signal, B1 will output the same signal at 5V and when B1 has a high 5V input, A1 will output the same signal at 3.3V ( No direction control required because this product is bidirectional! )
- Not recommended for I2C connections. For I2C connections use: TS2567
TS3040
