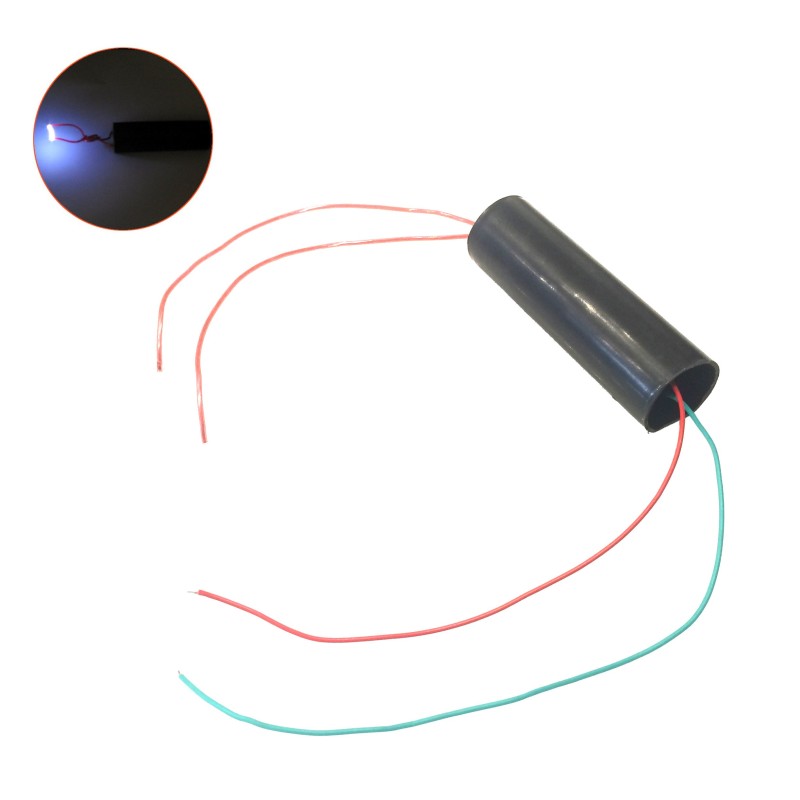

Ultra High Voltage Generator Module Inverter 1000kv

USE CAUTION! HIGH VOLTAGE SPARKS ARE GENERATED BY THIS DEVICE. NOT FOR CHILDREN OR INEXPERIENCED ENGINEERS.

Features:

• Module type: MC-901
• Input voltage: 3.7V-7.4V
• Input current: 0.5A-1A
• Input wire length: 9 cm
• High voltage type: pulse DC type
• Output voltage: 800KV-1000KV (please exercise caution and adhere to safety procedures when using)
• Output current: 0.5A-1A
• Output length: approximately 16 cm
• High voltage bipolar discharge distance: 1.5 cm -2 cm
• Size:88x26mm(LxD)

Module Usage Notes:

• Do not connect the high power end to a large load.

• Adjust the distance between the high voltage lines before powering on the device. (The distance between the wires is the arc distance)

• Voltage and current is proportional to the distance between the high voltage lines and batteries used.

• Do not exceed the maximum arc distance to avoid damaging the module. (When the maximum arc distance is exceeded, there will be no arc since the air resistance is too high. This will damage the module.)

• The module generates internal heat when in use therefore prolonged usage should be avoided.
