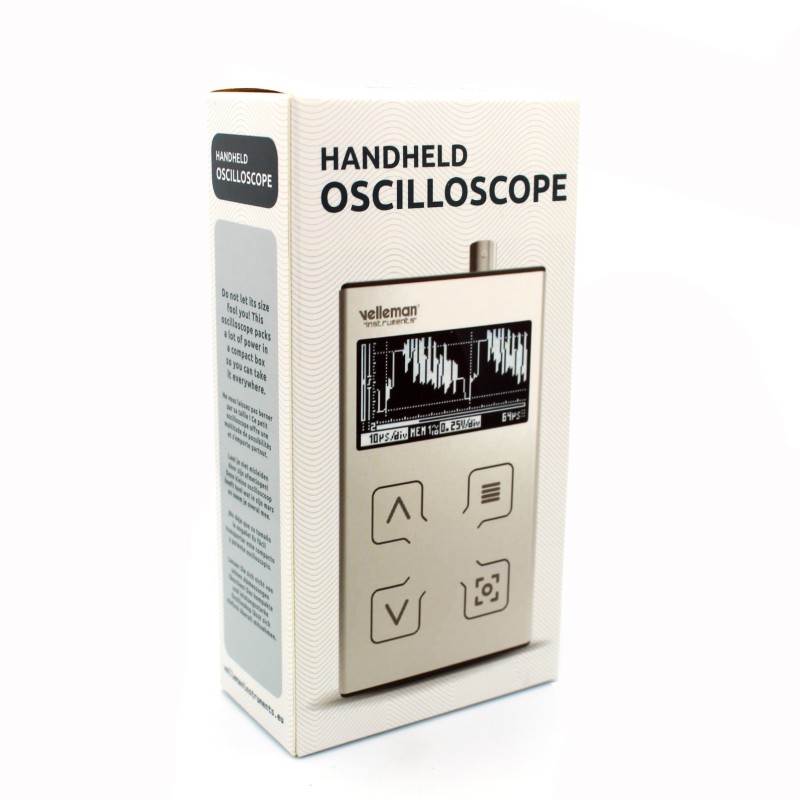

Portable Oscilloscope: HPS140MK2

This Oscilloscope packs a lot of power in a tiny box. This compact oscilloscope is great for saving space on your benchtop while being portable enough to take with you for debugging on the go!

Features

• 40 Mega samples/sec in real time
• bandwidth up to 10 MHz
• full auto range option
• sensitivity down to 0.1 mV
• signal markers for amplitude and time
• memory hold function
• direct audio power measurement

Specifications

• bandwidth: up to 10 MHz (-3dB or -4dB at selected ranges)
• input range: 1 mV to 20 V / division in 14 steps
• input coupling: DC, AC and GND
• real-time sample rate up to 40 MS/s
• AD resolution: 8 bits
• time base: 250 ns to 1 h per division
• auto set-up function (or manual)
• probe x10 readout option
• readouts: DC, AC + DC,True RMS, dBm, Vpp, Min-Max. (±2.5%)
• audio power measurement from 2 to 32 ohms
• hold & store function
• time and voltage markers readout
• max. 100 Vp AC + DC
• Monochrome OLED
• power supply: 4 x 1.5 V AAA batteries (not incl.)
• operating time: up to 8 hours on quality Alkaline batteries
• for use on CLASS II pollution degree II installations
• dimensions: 114 x 68 x 22 mm
• weight: 166 gr
• current consumption: max. 150 mA
