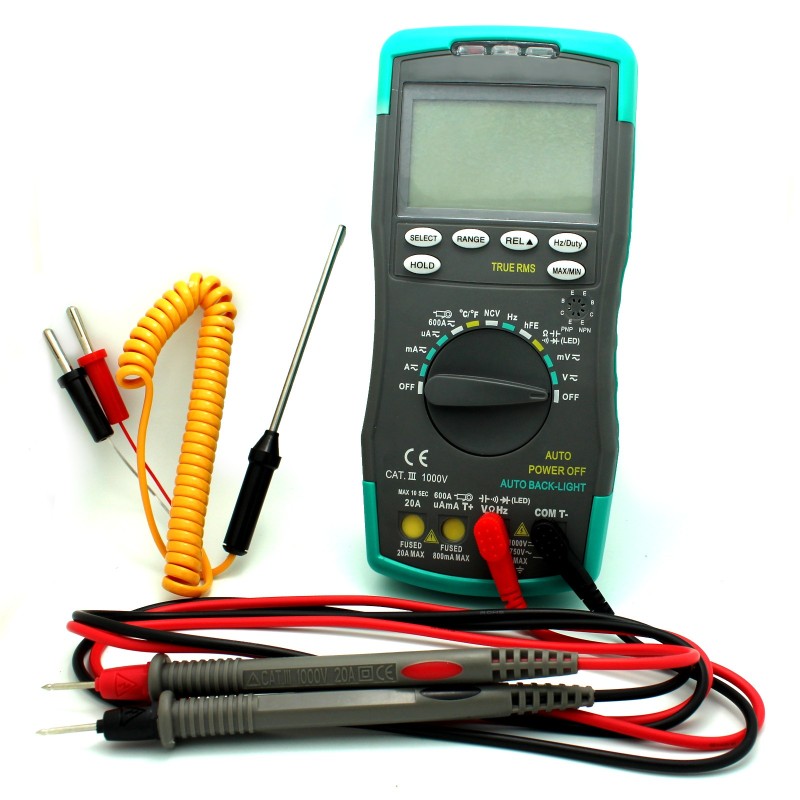

Digital Multimeter Auto Ranging Temp Capacitance & Frequency

Features:

• Large LCD display with 1 inch character height for clear reading and smart backlight, very convenient for use.
• Measures AC/DC voltage/current, diode, resistance, capacitance, frequency, duty cycle, temperature and hFE test.
• Non-contacted voltage(NCV) detector function.
• Relative value testing, data hold, MAX/MIN value hold and auto power off function.
• With unique mechanical protection function, preventing user from inserting the wrong jack.
• Function Switch indicator so that you can switch to the correct position in the darkness.
• Max. display value: 6000.
• The holder at the back can be rotated 180 degrees, can be hung as well.
• Can change the temperature unit between °C and °F.

Specifications:

• Color: Green & Grey
• Material: Plastic
• Maximum Display: 6000
• Range Control: Auto Range
• Screen Size: 2.36 x 1.38 inches (60 x 35mm)
• DC Voltage: 60mV/600mV/6V/60V/600V/1000V
• AC Voltage(True RMS): 60mV/600mV/6V/60V/600V/750V
• DC Current: 600μA/6000μA/60mA/600mA/6A/20A/600A
• AC Current(True RMS): 600μA/6000μA/60mA/600mA/6A/20A/600A
• Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ
• Capacitance: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
• Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz
• Duty Cycle: 0.1% to 99.9%
• Temperature: -20~1000°C/ -4~1832°F
• Diode Test: Yes
• Continuity Buzzer: Yes
• Transistor hFE Test: 0-1000
• NCV Detection: 90V~1000V AC rms
• Power Supply: 9V Battery (battery not included)
• Operating Temperature: 0C to 40C (32F to 104F)
• Storage Temperature: -20C to 60C (-4F to140F)
• Item Size: Approx. 7.7 x 3.4 x 1.4 inches (19 x 8.5 x 3.5cm)
• Item Weight: 11oz

Package List:

• 1 Multimeter
• 1 Storage Bag
• 1 Pair of Test Leads
• 1 Temperature Probe
• 1 User Manual
