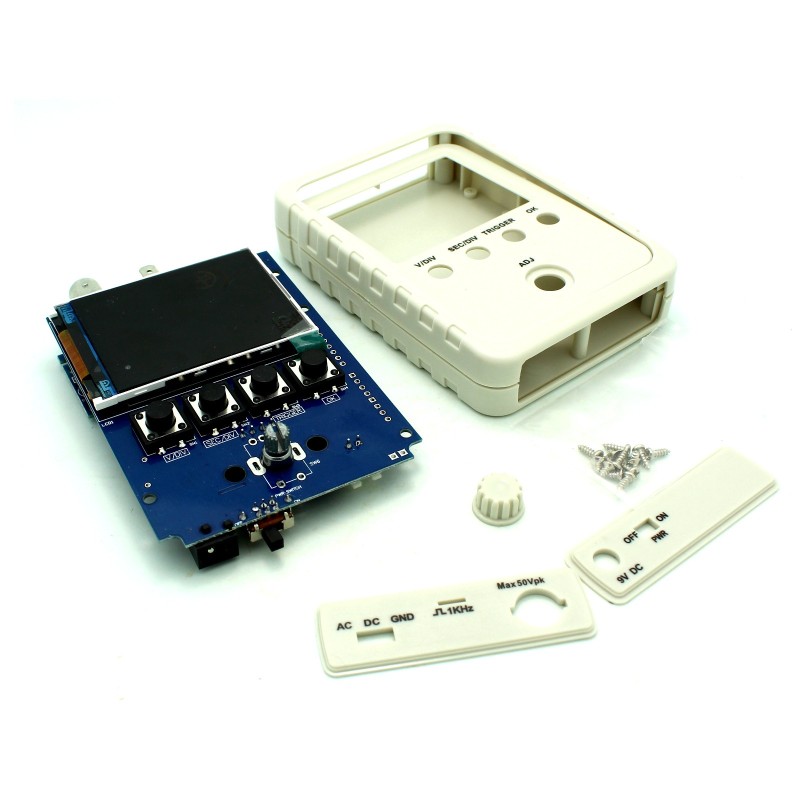

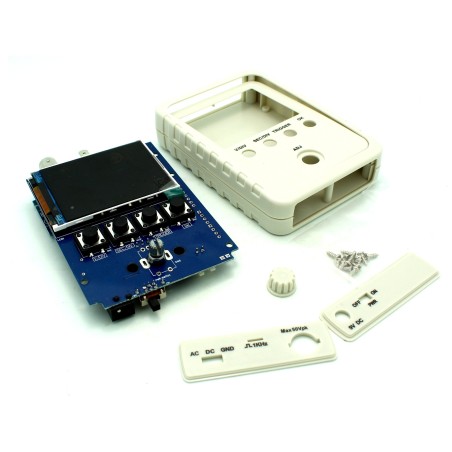

DIY Pocket Oscilloscope Kit
$39.99
✅SHIPS TODAY
DIY Pocket Oscilloscope with 2.4 inch color LCD screen, probe and case. Display waveform frequency, period, pulse width, duty ratio, min, max, avg, peak to peak, etc. Put together your own pocket oscilloscope to use your skills for cost savings!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- ARM Cortex-M3 processor (STM32F103C8)
- 2.4-inch color LCD screen
- Open source software
- Auto / Normal / Single trigger modes, making it easy to capture waveforms
- Rising or falling edge triggers
- Observe previous waveform before trigger (negative delay).
- Freeze the waveform display at any time (HOLD function).
- Digital waveform parameter display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
- Waveform storage function: will not lose the waveform after powering off.
- Short-circuit and open-circuit detection: can help the user find out the soldering error.
- TFT controller recognition function.
- SMD chips are pre-soldered, suitable for electronics beginners as well
- Maximum Real-time Sampling Rate: 1MSa/s
- Analog Bandwidth: 0-200KHz
- Sensitivity Range: 5mV/div-20mV/idv
- Maximum Input Voltage: 50Vpk (1X probe)
- Input Impedance: 1M ohms/20pF
- Accuracy: 12 Bits
- Record Length: 1024 points
- Coupling Modes: DC / AC / GND
- Time Base Range: 500s/Div - 10us / Div
- Trigger Modes: Auto, Normal, and Single
- Trigger Position: Center of Buffer
- Supply Voltage: DC 9V(8-10V)
- Current Consumption:~120mA @ 9V
- Main Board Size: 94 * 65mm / 3.7 * 2.56in
- Analog Board Size: 65 * 47mm / 2.56 * 1.85in
- Screen Size: 52 * 40mm / 2 * 1.57in
- Includes:
- Digital Oscilloscope DIY Kit
- BNC to Alligator Clip Probe
- Protective Plastic Case
- Illustrated Assembly Instructions
TS2911
