Round RGB-666 TTL TFT Display - 2.1" 480x480 - Capacitive Touch
$39.90
✅SHIPS TODAY

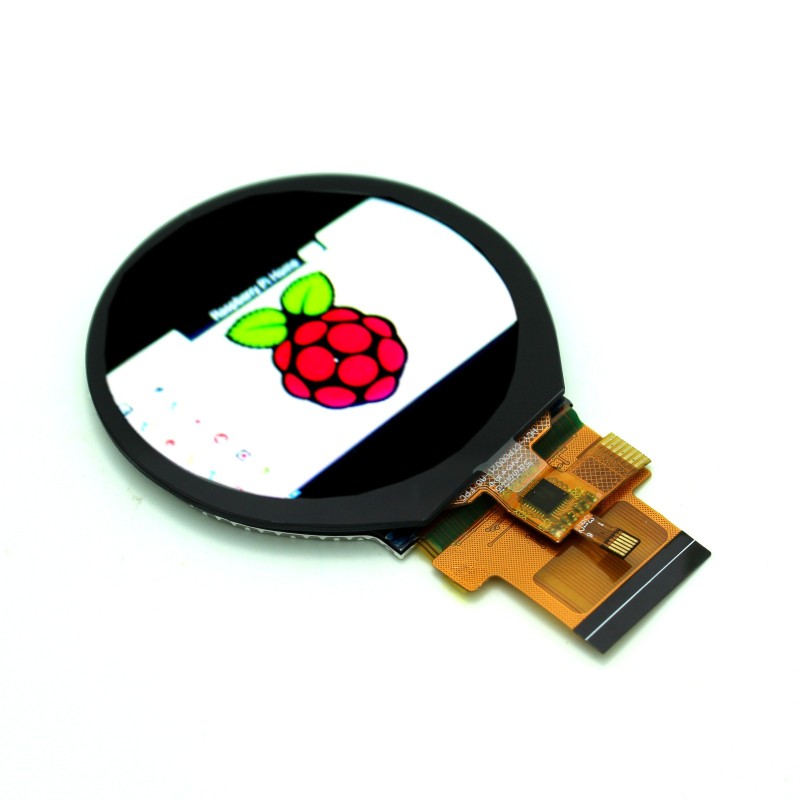

This Full Color 2.1" Round IPS touchscreen display has lovely contrast round shape and full color RGB led pixels. You can display your images directly onto this round TFT display by direct programming or easily via HDMI using the HDMI adapter board for RGB-666 Displays. Also uses I2c touch for a touchscreen input.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This Full Color 2.1" Round IPS touchscreen display has lovely contrast round shape and full color RGB led pixels. You can display your images directly onto this round TFT display by direct programming or easily via HDMI using the HDMI adapter board for RGB-666 Displays. Also uses I2C touch for a touchscreen input.
Specifications:
- Round / Circular Full Color RGB TFT Module Touchscreen Display
- Capacitive Touch Module
- Touch Screen Protocol: I2C (Pins 35 to 39 as listed below)
- Number of pins: 40
- To easily connect to HDMI devices without programming use with:
- HDMI Adapter Board for RGB-666 Displays (sold separately)
- Operating Voltage: 3.3V
- Communication Protocol: SPI and TTL RGB
- Resolution: 480x480
- Colors: Full Color RGB
- Screen Size: 2.1"
- Viewing Angle: IPS full view
- Operating Temperature: -20C to 70C
- Chipset: ST7701
- Dimensions: 2.33 x 2.41 x 0.16 inches (59.26 x 61.27 x 4.15mm)
- Display Area Diameter: 2.1 inches
- Pinout:
- LED A: LED Anode
- LED K: LED Cathode
- LED K: LED Cathode
- GND: Ground
- VCI: Power Supply
- RESET: Reset Signal, Active Low
- NC: No Connect
- NC: No Connect
- SDA: SPI Data Signal
- SCK: SPI Clock Signal
- CS: SPI Chip Select Signal
- PCLK: RGB Dot Clock Signal
- DE: RGB Data Enable Signal
- VSYNC: RGB Frame Synchronizing Signal
- HSYNC: RGB Line Synchronizing Signal
- DB0: RGB Data Signal, Blue #0 LSB
- DB1: RGB Data Signal, Blue #1
- DB2: RGB Data Signal, Blue #2
- DB3: RGB Data Signal, Blue #3
- DB4: RGB Data Signal, Blue #4
- DB5: RGB Data Signal Blue #5 MSB
- DB6: RGB Data Signal Green #0 LSB
- DB7: RGB Data Signal Green #1
- DB8: RGB Data Signal Green #2
- DB9: RGB Data Signal Green #3
- DB10: RGB Data Signal Green #4
- DB11: RGB Data Signal Green #5 MSB
- DB12: RGB Data Signal Red #0 LSB
- DB13: RGB Data Signal Red #1
- DB14: RGB Data Signal Red #2
- DB15: RGB Data Signal Red #3
- DB16: RGB Data Signal Red #4
- DB17: RGB Data Signal Red #5 MSB
- GND: Ground
- TP_INT: Touch Interrupt
- TP_SDA: Touch I2C Data Signal
- TP_SCL: Touch I2C Clock Signal
- TP_SCL: Touch I2C Clock Signal
- TP_VVI: Touch Power Supply
- GND: Ground
