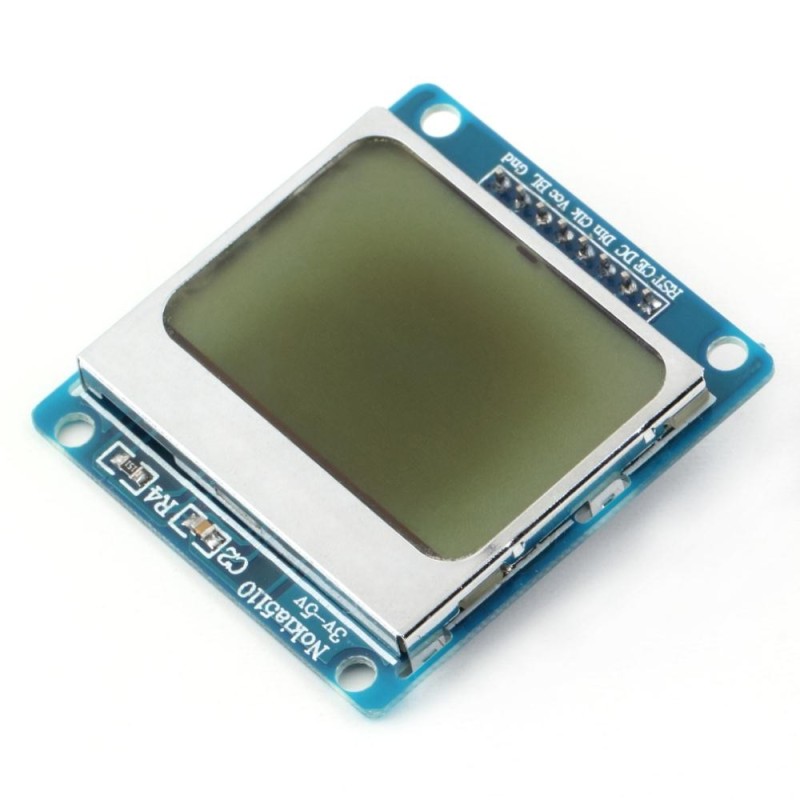

Graphic LCD 84x48 - Nokia 5110
$9.99
✅SHIPS TODAY
Graphic monochrome LCD for basic text and graphic displays. Screen may have scratches and cosmetic wear.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Resolution: 84x48 pixels
- Color: Mono-chrome
- Screen may have scratches and cosmetic wear
- Communication Protocol: Serial
- Pinout:
- RST: Reset
- CE: Chip Enable
- DC: Data/Command
- DIN: Serial Data Input
- CLK: Serial Clock
- 3.3V: VCC
- LIGHT: backlight control
- GND: Ground 0V
- Color: Black with White Backlight
- Power supply voltage: 2.7V - 3.3V, 5V sometimes works but is not recommended because it could damage your screen (use a logic level shifter with 5V Arduino boards or use a 3.3V Arduino-based board)
- Data Pin Level: 2.7-5V
- Backlight Power Supply Voltage: 3.3V max
- Dimensions: 43.6mm x 43.1mm
References:
- Arduino Library: http://playground.arduino.cc/Code/PCD8544
TS1676
