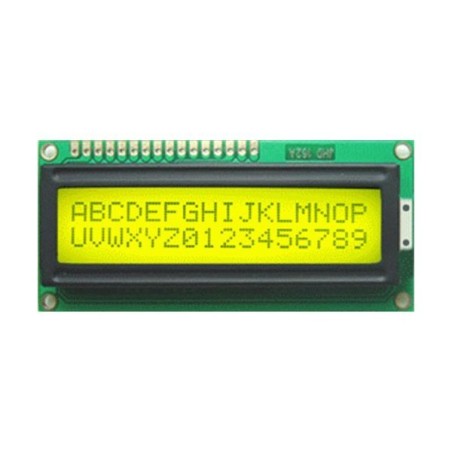

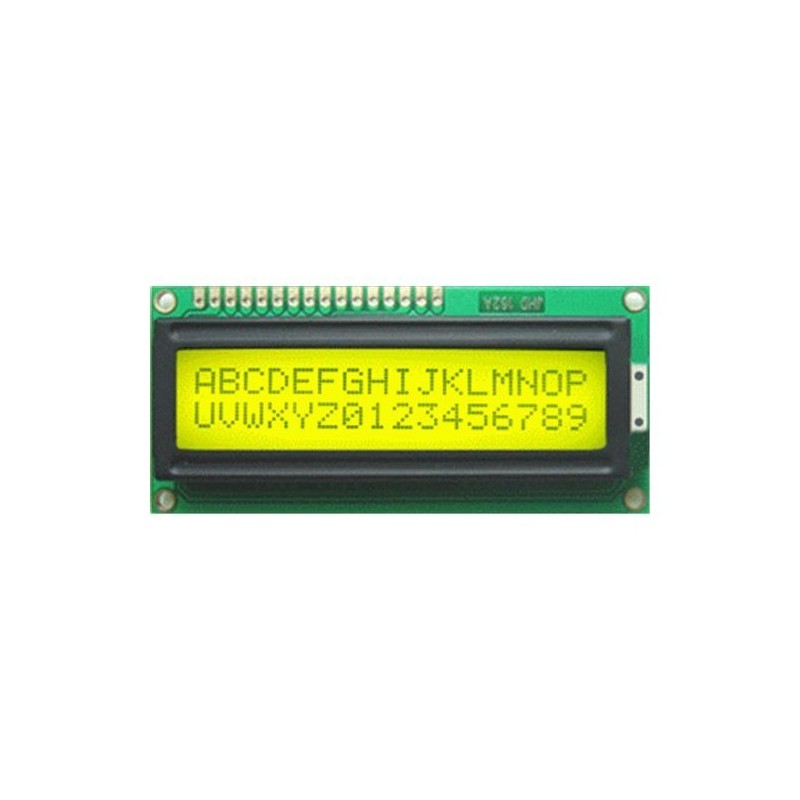

16x2 LCD Module (Black Text / Green Backlight)
$9.99
✅SHIPS TODAY
Add this 16x2 LCD Module to your projects for a 32 character display with black text on a green background. Arduino & Raspberry Pi compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This LCD module allows you to display 32 characters (16 per row) on a green backlit screen. Solder on some male header pins to stick into a breadboard or solder wires directly to the board. Black text will display on a green illuminated background for easy viewing day or night!
Specifications:
- 16x2 LCD Module
- Arduino & Raspberry Pi compatible
- Text Color: Black
- Backlight: Yes
- Backlight Color: Green
- Pinout:
- VSS: Ground, 0V
- VDD: Logic Power Supply, 0.3V - 7V
- VO: Operating Voltage for LCD, Min voltage: VDD-15V, Max voltage: VDD+0.3V
- RS: Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
- R/W: Read / Write (H: Read Mode, L: Write Mode)
- E: Enable Signal
- DB0: Data Bit 0
- DB1: Data Bit 1
- DB2: Data Bit 2
- DB3: Data Bit 3
- DB4: Data Bit 4
- DB5: Data Bit 5
- DB6: Data Bit 6
- DB7: Data Bit 7
- LED_A: Backlight Anode
- LED_K: Backlight Cathode
- Pin spacing: 2.54mm (0.1") (like our header pins)
TS1308
