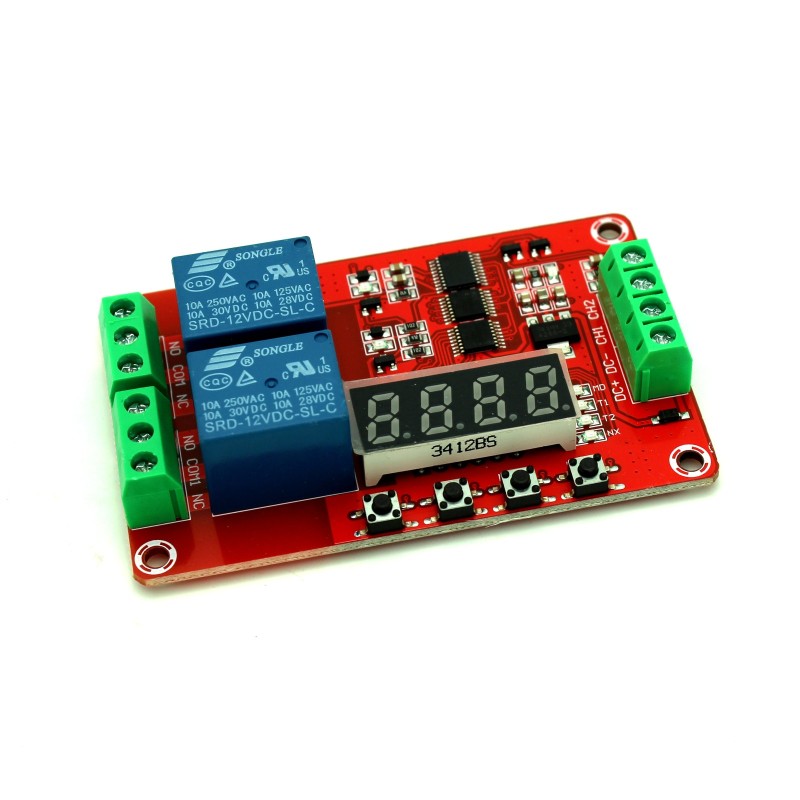

Windshield Wiper Robot or Interval Timer 5V 12V 24V 2 Channel Multi Function Relay Module Time Delay

Adjustable interval timer to turn on / off repeatedly for any time length between 0.1 seconds and 270 hours. Can be used for the windshield wipers of your car. It can also be used for automatic slide projection.

Specifications

• relays on PCB: 2 inverters
• power supply: 12V DC
• PCB dimensions: 3.03 x 1.97" x 0.79" (77mm x 50mm x 20mm)
• Screw size: M3 (3mm diameter)
• Screw holes center distance: 2.32" x 1.30"
• At least 0.1 second timing can be set, the timing accuracy is +/- 0.01 seconds.
• 18 Modes:
  1.Timing pull in
  2.Timing disconnected
  3.Timing pull in and disconnected.
  4.Timing off then pull in
  5.Infinite loop timing mode 1
  6.Infinite loop timing mode 2
  7.Finite loop timing mode 1
  8.Finite loop timing mode 2
  9.Self-lock relay mode
  10.Trigger relay mode
  11.Trigger timing pull in
  12.Trigger timing disconnected
  13.Trigger timing pull in and disconnected.
  14.Trigger timing disconnected and pull in
  15.Infinite loop timing mode 1
  16.Infinite loop timing mode 2
  17.Finite loop timing mode 1
  18.Finite loop timing mode 2
• Module Connections:
  • Control Input:
    DC +: 12V DC positive power
    DC-: 0V GND DC negative power
    CH1: input detected port, high level effective.
    CH2: input detected port, high level effective.
  • Relay Outputs:
    NO: relay normally open port, relay pull in before as the vacant,after pull in with the COM1 short connection.
    COM: relay common port.
    NC: relay normally closed port, relay with COM1 short connection before pull in, vacant after pull in.
  • Load capacity: normally open port maximum load capacity: DC 0-30V / 10A, AC 0-250V / 10A.
  • Normally closed port maximum load capacity: DC 0-28V / 10A, AC 0-125V / 10A
