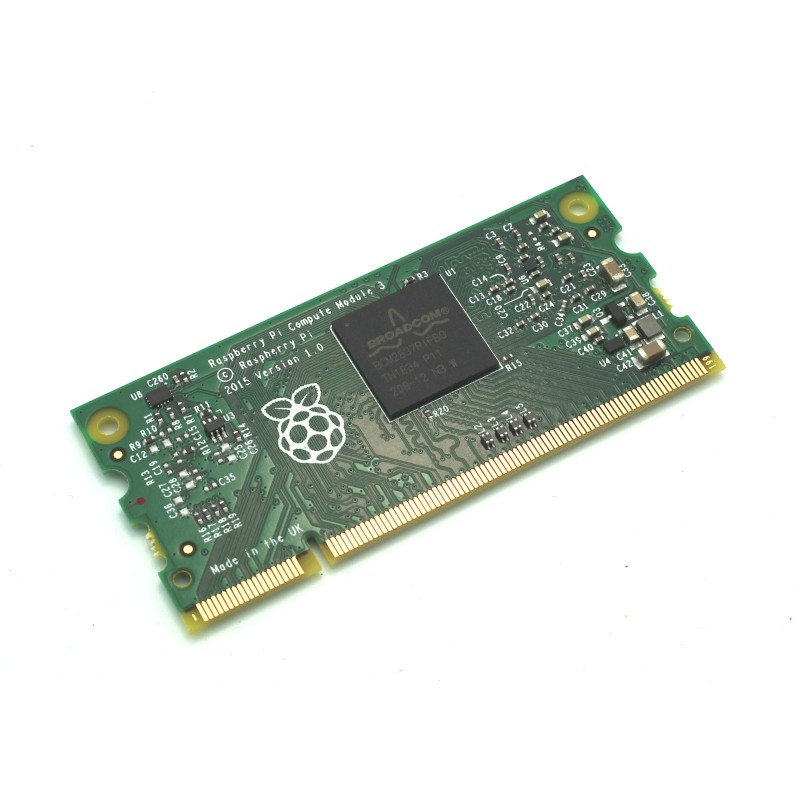

Raspberry Pi Compute Module 3 Lite CM3L

The Raspberry Pi Compute Module 3 Lite has the form factor of a DDR2-SODIMM RAM board and has extra IO interfaces over and above what is available on the standard Raspberry Pi models. Use the Raspberry Pi Compute Module 3 Lite to start building embedded Raspberry Pi products for mass production.

Includes:

• 1 Raspberry Pi Compute Module 3 Lite (CM3L)

Features:

• CM3L contains a BCM2837 processor (as used on the Raspberry Pi 3) and 1GB LPDDR2 RAM
• The Compute Module 3 Lite brings the SD card interface to the Module pins so a user can wire this up to an eMMC or SD card of their choice.
• CM3L product is the same as CM3 except the eMMC Flash is not fitted, and the SD/eMMC interface pins are available for the user to connect their own SD/eMMC device.
• The BCM2837 processor is an evolution of the BCM2835 processor that can address more RAM (up to 1GB) and the ARM CPU complex has been upgraded from a single core ARM11 in BCM2835 to a Quad core Cortex A53 with dedicated 512Kbyte L2 cache. All IO interfaces and peripherals stay the same and hence the two chips are largely software and hardware compatible.
• Dimensions: 67.6mm x 31mm
• Peripherals:

  48x GPIO
  2x I2C
  2x SPI
  2x UART
  2x SD/SDIO
  1x HDMI 1.3a
  1x USB2 HOST/OTG
  1x DPI (Parallel RGB Display)
  1x NAND interface (SMI)
  1x 4-lane CSI Camera Interface (up to 1Gbps per lane)
  1x 2-lane CSI Camera Interface (up to 1Gbps per lane)
  1x 4-lane DSI Display Interface (up to 1Gbps per lane)
  1x 2-lane DSI Display Interface (up to 1Gbps per lane)

• Software:

  ARMv6 (CM1) or ARMv7 (CM3, CM3L) Instruction Set
  Mature and stable Linux software stack
  Latest Linux Kernel support
  Many drivers upstreamed
  Stable and well supported userland
  Full availability of GPU functions using standard APIs
