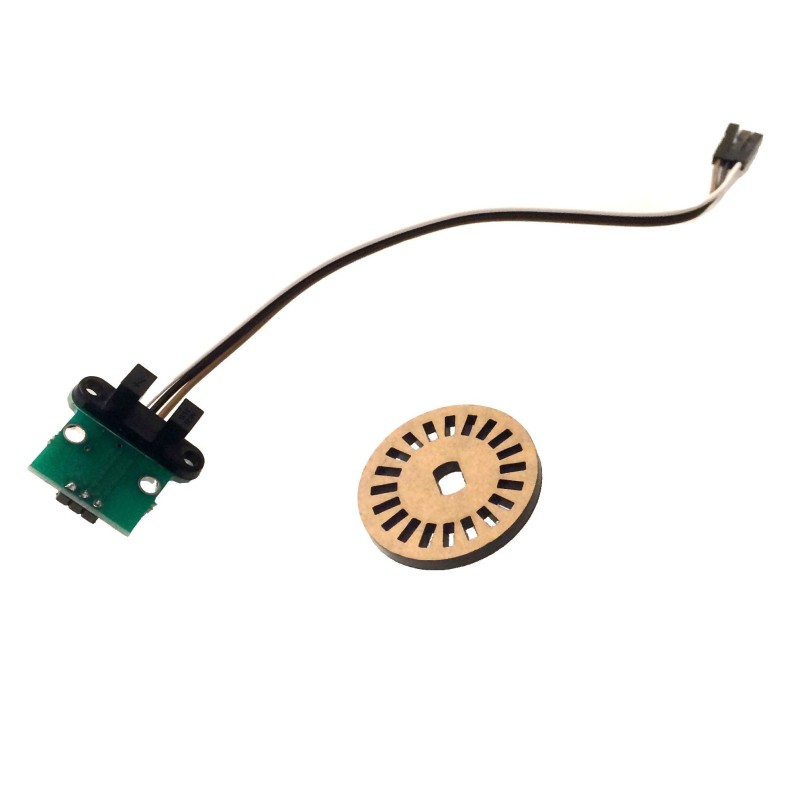

Rotary Encoder & Wheel Set
$5.99
✅SHIPS TODAY
Use this Rotary Encoder set to measure the number of rotations your wheels make. Includes 1 encoder module and 1 encoder wheel!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Meaures the number of rotations your wheels make with this rotary encoder & wheel set. Useful for ensuring your robot has error correction to keep on a 100% straight path! It works by having an infrared light beam shine between the 2 black pegs on the encoder. As the wheel rotates and intercepts the light beam, your signal will alternate between High and Low.
Features:
- Number of notches per wheel: 20
- Input Voltage(VCC): 4.5V to 5.5V DC
- Input Current: 25mA
- Measurement Frequency: 100 kHz
- Signal Output: Square Wave (GND to VCC)
- Encoder Size: 24mm
- Includes: 1 wheel and 1 encoder
- Pinout:
- 5V: Power
- GND: Ground
- OUT: Signal (to your Arduino or other microcontroller)
- Encoder wheels fit great on:
- TS-322
- TS1088
- TS1087
- Motors in TS-429 Robot Chassis
TS1472
