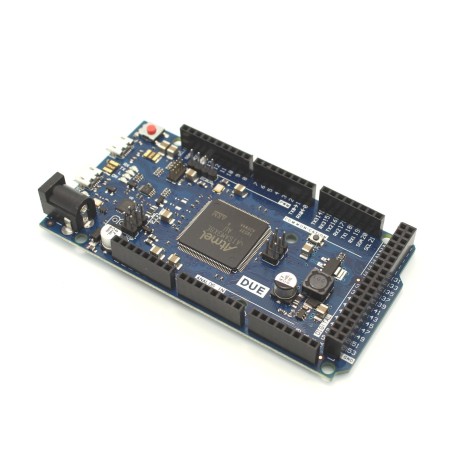

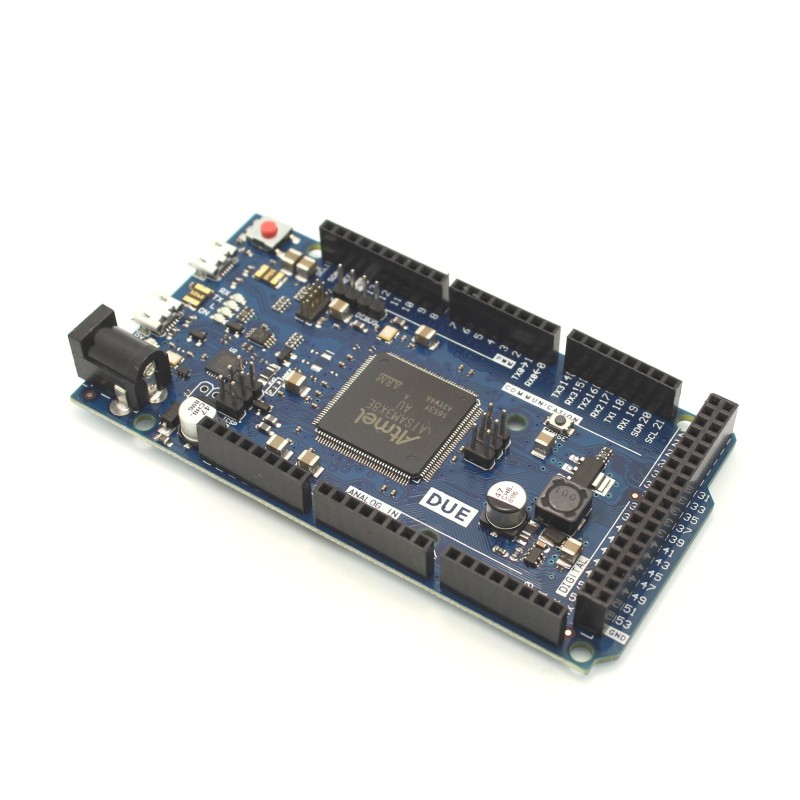

Due R3 (Arduino Compatible)
$34.49
✅SHIPS TODAY
This Arduino-Compatible Due R3 is the first in the Arduino-compatible family of boards based on a 32-bit ARM core microcontroller. 54 digital input/output pins (12 PWM capable), 12 analog inputs, 4 UARTs, a 84 MHz clock, an USB OTG capable connection, 2 DAC, 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This Arduino-Compatible Due R3 is the first Arduino board based on a 32-bit ARM core microcontroller. 54 digital input/output pins (12 PWM capable), 12 analog inputs, 4 UARTs, a 84 MHz clock, an USB OTG capable connection, 2 DAC, 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. Just plug in a Micro USB cable and program using the Arduino IDE.
Features:
- Due R3 Arduino Compatible Board
- Programmable via the Arduino software interface
- Fully assembled
- 54 Digital Input/Output Pins (12 of them support PWM)
- 12 Analog Pins
- 4 UARTs (hardware serial ports)
- 84MHz clock onboard
- ARM Based: based on the Atmel SAM3X8E ARM Cortex-M3 CPU
- USB OTG capable connection, 2 DAC, 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button built in
Specifications:
- Microcontroller: AT91SAM3X8E
- Operating voltage: 3.3 V
- Input voltage (recommended): 7-12 V
- Input voltage (limits): 6-20 V
- Digital I/O pins : 54 (of which 12 provide PWM output)
- Analog input pins: 12
- Analog outputs pins (DAC): 2
- Total DC output current on all I/O lines: 130 mA
- DC current for 3.3V pin: 800 mA
- DC current for 5V pin: 800 mA
- Flash memory: 512 KB all available for the user application
- SRAM : 96 KB (two banks: 64 KB and 32 KB)
- Clock speed: 84 MHz
TS2237
