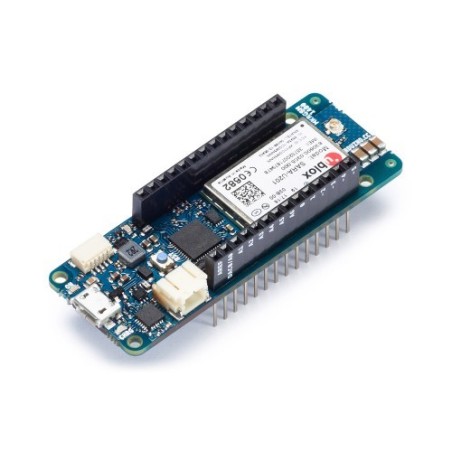

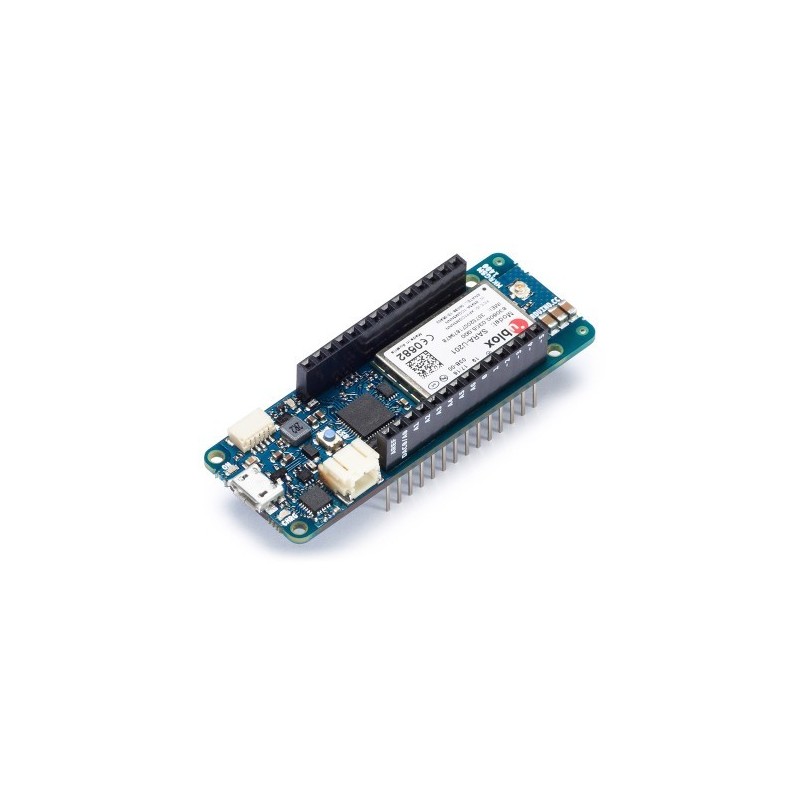

Arduino MKR GSM 1400 (with SIM Card slot)
$142.99
✅SHIPS TODAY
The MKR GSM 1400 comes with built in GSM connectivity! Pop in a sim card at the bottom with the built in SIM Card slot.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Built in SIM Card slot for GSM connectivity
- Global GSM Compatibility
- 32 Bit Computational Power
- 3.3V Logic Level
- Board must be powered by 5V 2A via VIN
- SARAU201 GSM module onboard
Specifications:
| Microcontroller | SAMD21 Cortex-M0+ 32bit low power ARM MCU |
| Board Power Supply (USB/VIN) | 5V |
| Supported Battery(*) | 3.7V LiPo |
| Circuit Operating Voltage | 3.3V |
| Digital I/O Pins | 8 |
| PWM Pins | 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19) |
| UART | 1 |
| SPI | 1 |
| I2C | 1 |
| Analog Input Pins | 7 (ADC 8/10/12 bit) |
| Analog Output Pins | 1 (DAC 10 bit) |
| External Interrupts | 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17) |
| DC Current per I/O Pin | 7 mA |
| Flash Memory | 256 KB |
| SRAM | 32 KB |
| EEPROM | no |
| Clock Speed | 32.768 kHz (RTC), 48 MHz |
| LED_BUILTIN | 6 |
| Full-Speed USB Device and embedded Host | |
| Antenna power | 2dB |
| Carrier frequency | 433/868/915 MHz |
| Working region | Global |
| Length | 67.64 mm |
| Width | 25 mm |
| Weight | 32g |
