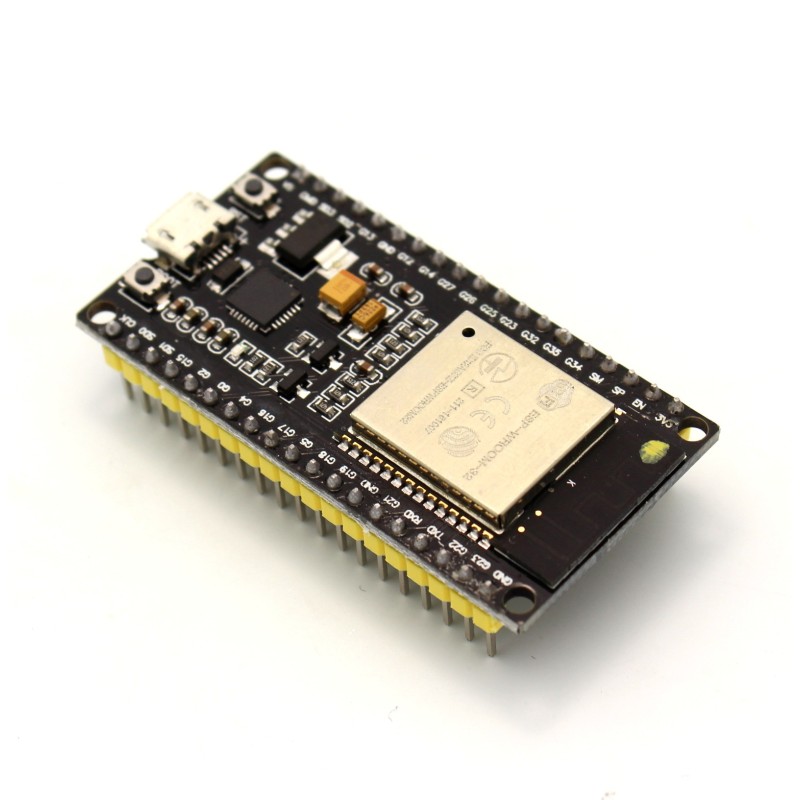

ESP32 IoT Board
$18.99
✅SHIPS TODAY
ESP32 board for IoT projects where internet connectivity is key. Upgraded version to the ESP8266 based boards featuring a dual core chip! Comes fully assembled so no soldering is required.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Fully assembled
- No soldering required
- Micro USB port for power and programming
- Dual core ESP32 chip onboard
- Comparable to Huzzah32 ESP32 Feather
- Wireless Module: WROOM32 module with tuned antenna
- Built in USB to Serial converter
- Automatic bootloader reset
- Built in WiFi, Classic Bluetooth and Bluetooth Low Energy (BLE)
- SPI Flash: 4 MB
- Dual core 240MHz Tensilica LX6 microcontroller with 600 DMIPS
- SRAM: 520 KB
- 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
- Ultra-low noise analog amplifier
- Hall sensor
- CP2104
- Number of capacitive touch interfaces: 10
- 32 kHz crystal oscillator
- UARTs: 3 (1 for bootloading / debug)
- SPI: 3
- I2C: 2
- Analog inputs: 12
- Analog Outputs: 2
- I2S Audio Pins: 2
- PWM / Timer input/output: all GPIO pins
- OpenOCD debug interface with 32 kB TRAX buffer
- SDIO master/slave 50 MHz
- SD-card interface support
- Programmable via Arduino IDE or low level ESP32 IDF
- Logic Level: 3.3V
- Onboard 3.3V Regulator so it can be powered via 5V / USB
Compared to our ESP8266 boards. This upgraded ESP32 board features:
- Dual cores so the WiFi manager can run simultaneously without yielding
- Faster processor
- More GPIO pins
- More analog input pins
- More analog output pins
- Extra UART
