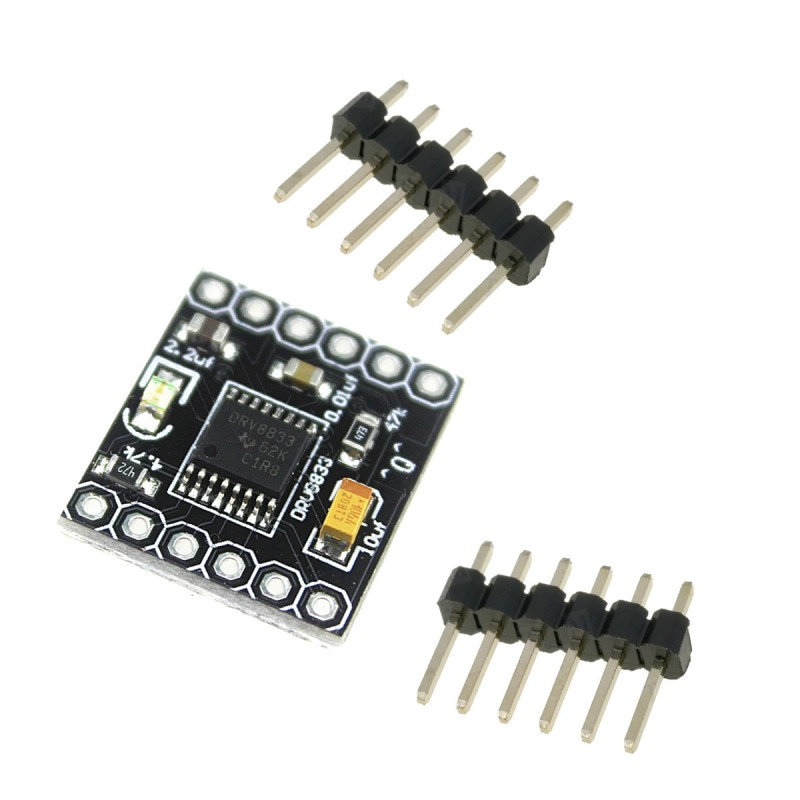

DRV8833 DC/Stepper Motor Driver Breakout Board
$4.99
✅SHIPS TODAY
Control two DC motors or one 4-wire stepper motor with up to 1.5A per channel using this DC / Stepper Motor Driver.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- DRV8833
- 2 Full H-bridges onboard
- Operating Voltage: 2.7V - 10.8V
- Max Current Per Channel: 1.5A
- Control 2 bi-directional DC motors or 1 stepper motor
- Built in kick-back diodes
- Logic Voltage High: 2.7V or greater (works with Arduino, Orange Pi, Raspberry Pi & other 5V or 3.3V microcontrollers)
- Overcurrent protection, Short circuit protection, undervoltage lockout, overheating protection & low-power sleep modes
- Pinout:
- ULT PIN: Mode select pin (Low level is sleep mode)
- IN1 / IN2: H-bridge that controls OUT1 and OUT2
- IN3 / IN4: H-bridge that controls OUT3 and OUT4
- EEP PIN: Output protection. For normal use this does not need to be connected.
- VCC: 2.7V - 10.8V DC
- GND
