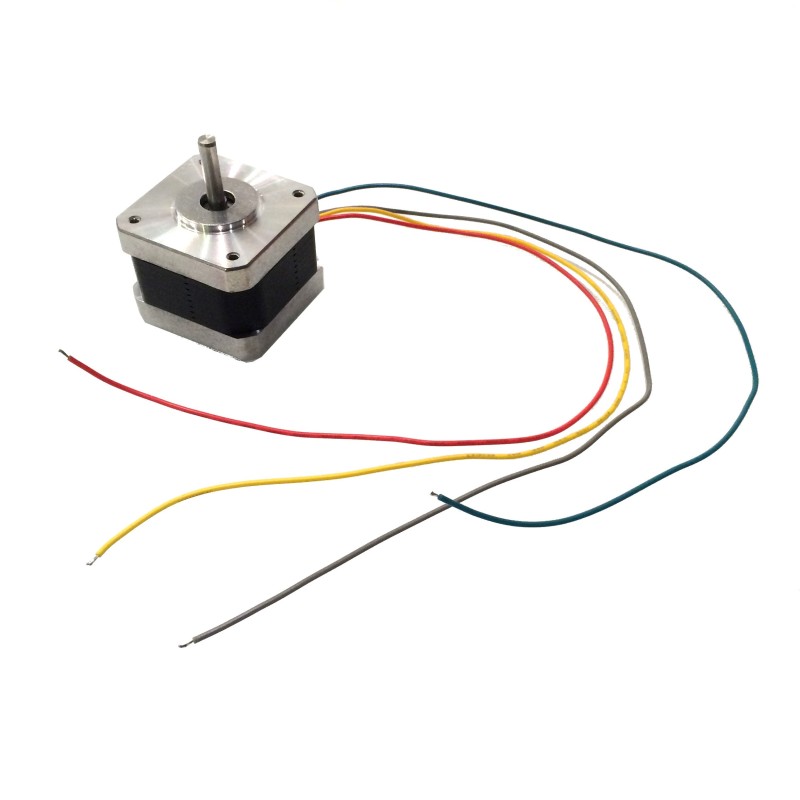

NEMA 17 Stepper Motor with Detachable Wires: 4.8V
$18.99
✅SHIPS TODAY
Use this NEMA 17 sized stepper motor to get accurate motion in steps. Ideal for 3D printers & CNCs. Reprap compatible
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Specifications:
- Operating Voltage: 4.8V
- Size: NEMA 17
- Holding Torque: 280 mN.m
- Detent Torque: 12mN.m
- Shaft Diameter: 5mm
- Motor Length: 34mm
- Dimensions: 42mm x 42mm x 34mm
- Step Angle: 1.8 degrees
- Rated Current: 0.84A
- Resistance per phase: 5.8 Ohm +/- 10%
- Inductance per phase: 9.3mH +/- 2%
- Number or Phases: 2
- Pinout:
- Red: A+
- Green: A-
- Yellow: B+
- Gray/Blue: B-
- Insulation Resistance: 100Mohm (500VDC)
- Insulation Class: B
- Rotor Inertia: 38g.cm^2
- Mass: 0.2kg
- CE, RoHS, TUV approved
TS1353
