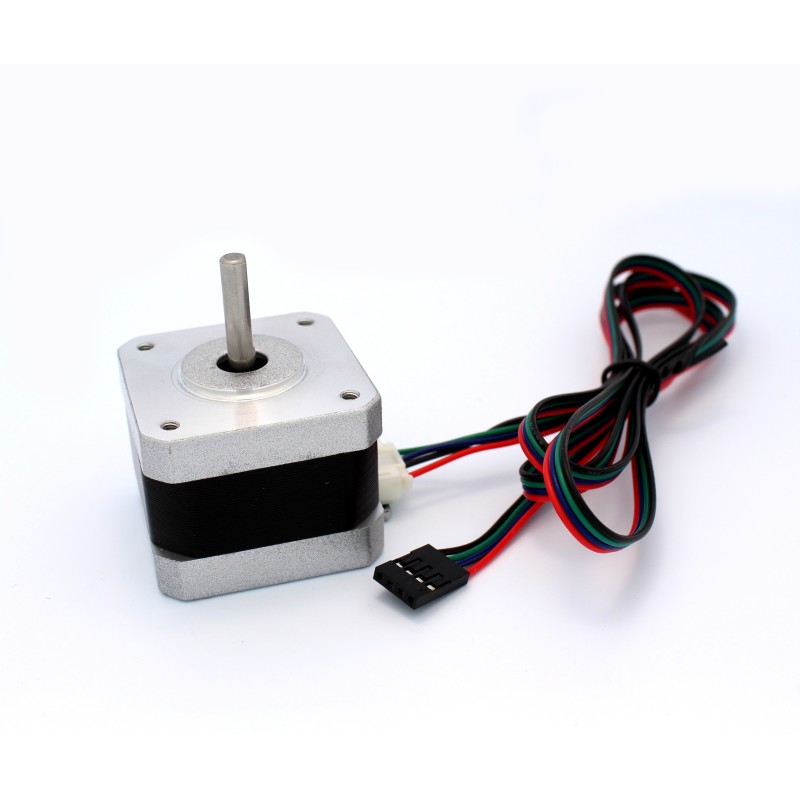

NEMA 17 Stepper Motor with Detachable Wires: 12V
$13.99
✅SHIPS TODAY
Use this 200 steps/rev, 12V 400mA NEMA 17 sized stepper motor to get accurate motion in steps. Ideal for 3D printers & CNCs. Reprap compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Specifications:
- Operating Voltage: 12V
- Size: NEMA 17
- Number of steps per revolution: 200
- Wire Colors:
- Red: A+
- Blue: A-
- Green: B+
- Black: B-
- Bipolar stepper, requires 2 full H-bridges!
- 4-wire, 3.28 foot leads with headers on the end for easy wire connections
- 42mm/1.65" square body
- 31mm/1.22" square mounting holes, 3mm metric screws (M3)
- 5mm diameter drive shaft, 18mm long
- 12V rated voltage (you can drive it at a lower voltage with decreased torque) at 350mA max current
- 36.8 oz*in, 26 N*cm, 2.65 Kg*cm holding torque per phase
- 35 ohms per winding
- Holding Torque: 26Ncm(36.8oz.in)
- Shaft Diameter: 5mm
- Motor Length: 34mm
- Dimensions: 42mm x 42mm x 34mm
- Step Angle: 1.8 degrees
- Rated Current: 0.4A
- Resistance per phase: 30 Ohm +/- 10%
- Inductance per phase: 37mH +/- 20%
- Number or Phases: 2
- Insulation Resistance: 100Mohm (500VDC)
- Insulation Class: B
- Rotor Inertia: 38g.cm^2
- Mass: 0.2kg
- CE, RoHS, TUV approved
TS1885
