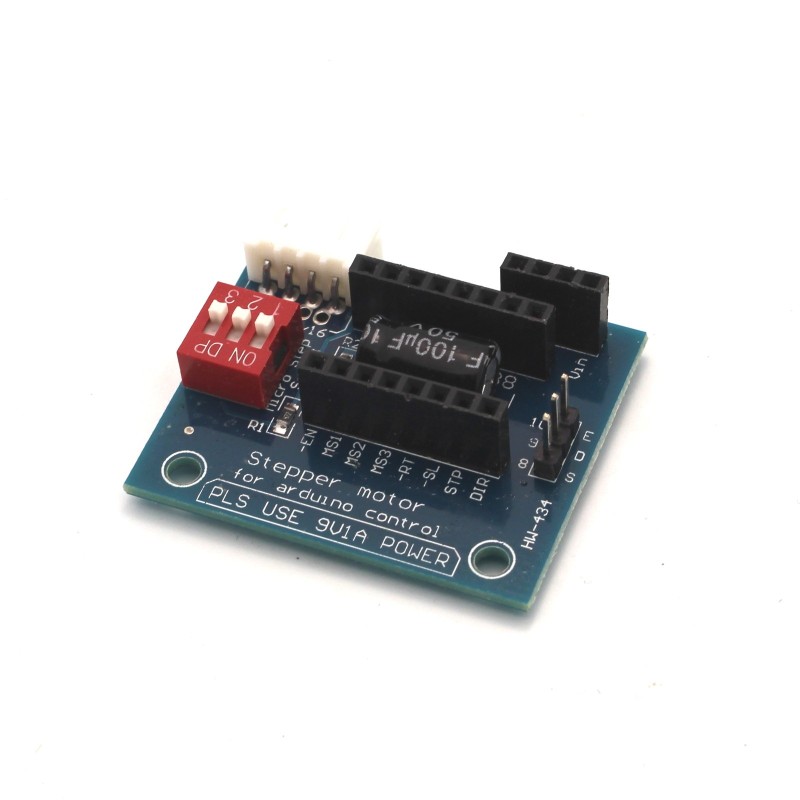

3D Printer A4988 Stepper Motor Driver Expansion Board
$9.99
✅SHIPS TODAY
Expansion board for the A4988 Motor driver so it can easily be integrated into projects without a lot of wiring.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Expansion board for the A4988 Motor driver for use with Arduino or other 5V microprocessor
- On-board DIP switch so you can easily adjust the drive segments
- Screw terminals for easy solderless connections
- Holds 1 A4988 Motor driver or 1 DRV8825 Motor Driver
- Set the jumpers to ON DP position for 16 segments (4988) or 32 segments (8825).
- Jm is connected to the motor.
- Jv connected to 5V and 12V-24V power supply.
- Jc's ESDG respectively corresponds to EnableStepDirGnd drive signal output
- Suitable for 42 stepper motor driving, 3D printers and DIY stepper motor projects
- Dimensions: 42 x 35 x 10mm
- Fixed Mounting Holes: 3mm
- Logic Voltage: 5V (suitable with Arduino boards)
- Motor Input Voltage: 12-30V
- Ports: Digital
- Interface: Direction, enable, speed
- Works with:
TS2757
