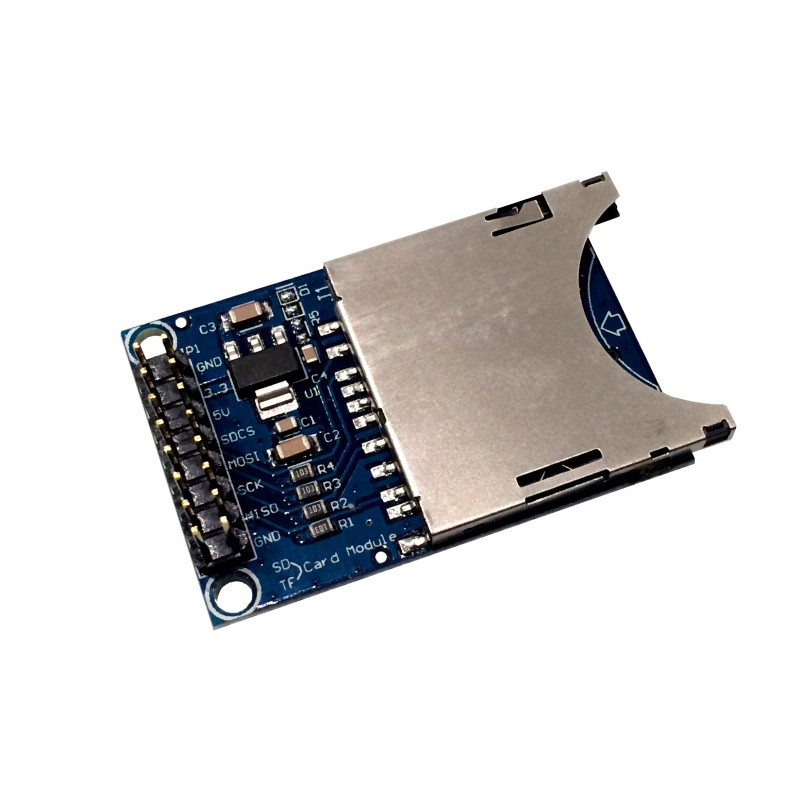

Full Size SD Card Reader Module (Arduino & Raspberry Pi Compatible)
$13.99
✅SHIPS TODAY
This SD Card Reader Breakout Module allows you to read directly off a full sized SD card and into your electronics projects via SPI. Arduino & Raspberry Pi Compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This SD Card Breakout Module allows you to read directly off an SD Card and into your microcontrollers such as Arduino & Raspberry Pi. The data is easily accessable via microcontroller using the popular SPI protocol.
Specifications:
- Power Supply Voltage: 4.5 - 5 V
- Logic Level: 3.3V / 5V
- Works with both 3.3V and 5V microcontrollers
- Supports full sized SD cards
- Communication Protocol: SPI
- M2 Screw Holes for easy mounting
- SD card port on board
- Pinout:
- GND: 0V
- 3.3V: 3.3V
- 5V: 4.5 - 5V
- SDCS: Chip Select
- MOSI: Input
- SCK: SPI Bus
- MISO: Output
- GND: 0V
- Storage Capacity: 1GB to 32GB
- SD Card Formatting: FAT16 / FAT32
- Note: If you have trouble with a certain SD card, try another card because some low quality cards may cause problems when trying to read / write data to and from Arduino.
- Dimensions: 2.0" x 1.2" x 0.47" (51 x 31 x 12mm)
- Weight: 8g
- Operating Temperature: 0 C - 125 C
TS1149
