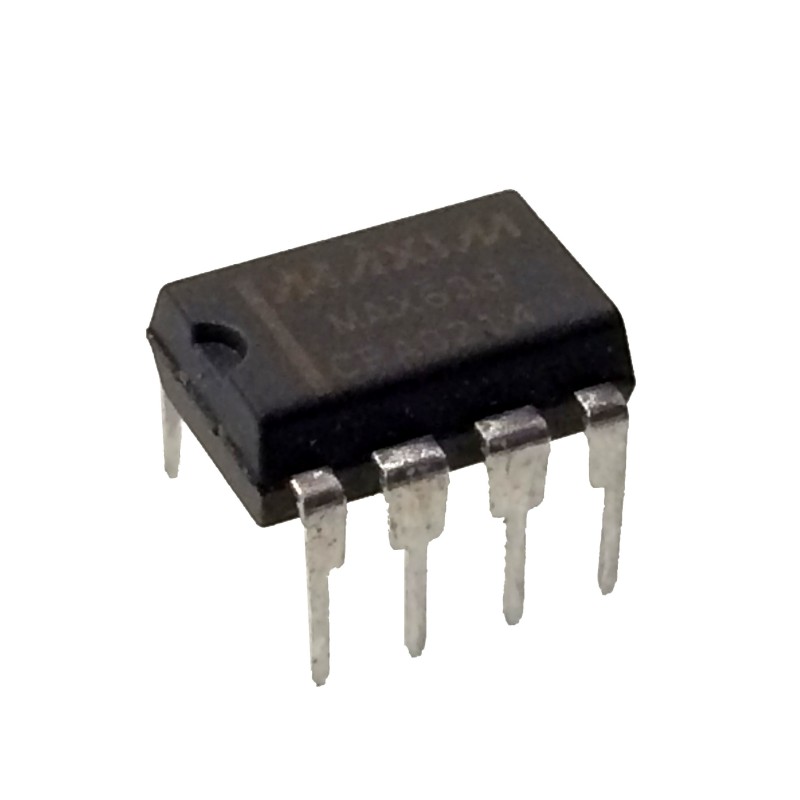

5V Adjustable Step Down DC-DC Converter: MAX639
$5.99
✅SHIPS TODAY
Step down a high voltage such as one from a 9V battery to 5V using this MAX639 Step Down DC-DC Converter. You can also adjust the output voltage from 1.3V to the input voltage via the VFB pin!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This adjustable Step Down DC-DC converter performs the functions of a standard 5V regulator and more! In addition to pulling down a 4V - 11.5V input to 5V output by default, you can also adjust the output voltage by connecting a voltage divider to the VFB (feedback) pin.
Specifications:
- Output Voltage:
- 5V by default
- adjustable from 1.3V to Vin (by connecting a voltage divider circuit to VFB pin)
- Input Voltage: 4V - 11.5V
- Can be used as a standard 5V regulator or as an adjustable regulator!
- High Efficiency
- Low Iq
- Designing power supplies with the MAX639 is easy. The few required external components are readily available. The most general applications use the following components:
- Capacitors: For the input and output filter capacitors, try using electrolytics in the 100μF range, or use low-ESR capacitors to minimize output ripple. Capacitor values are not critical.
- Diode: Use the popular 1N5817 or equivalent Schottky diode.
- Inductor: For the highest output current, choose a 100μH inductor with an incremental saturation current rating of at least 600mA. To obtain the highest efficiencies and smallest size, refer to the Inductor Selection section on the datasheet.
