OR Gate: 74HC32
$1.99
✅SHIPS TODAY

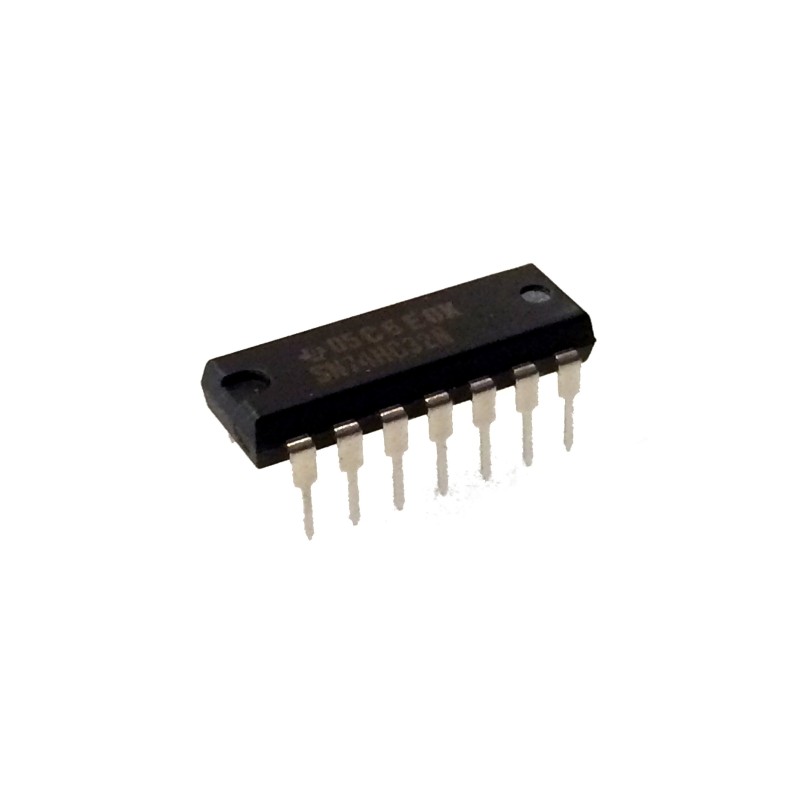

This chip includes 4 basic digital logic OR gates. Each OR gate takes in 2 inputs on the left side of the chip and gives out a HIGH output on the right side of the chip if input 1 OR input 2 is HIGH.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Specifications:
- Basic OR Gate IC
- Operating Voltage: 2V - 6V
- 4 2-input OR Gates on-chip
- Pinout:
- OR GATE Number 1:
- Pin 1 & 2: Inputs
- Pin 3: Output
- OR GATE Number 2:
- Pin 4 & 5: Inputs
- Pin 6: Output
- OR GATE Number 3:
- Pin 9 & 10: Inputs
- Pin 8: Output
- OR GATE Number 4:
- Pin 12 & 13: Inputs
- Pin 11: Output
- Power:
- Pin 14
- Ground:
- Pin 7
- OR GATE Number 1:
Click here to download the datasheet.
