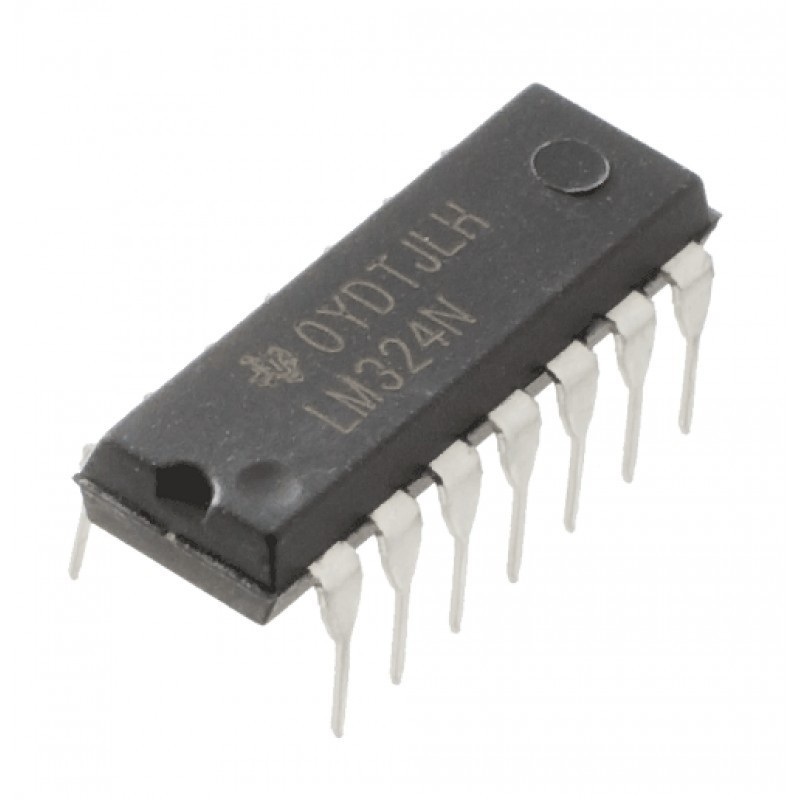

LM324 Quad Op Amp
$2.99
✅SHIPS TODAY
The LM324 is a Quad Op Amp which can work from 3V to 32V (single supply) or ±1.5 V to ±16 V (dual supplies) and has a large DC voltage gain of 100dB.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Operating Voltage:
- Single Supply: 3 V to 32 V
- Dual Supplies: ±1.5 V to ±16 V
- Very Low Supply Current Drain (700 μA)
- Essentially Independent of Supply Voltage
- Low Input Biasing Current 45 nA
- (Temperature Compensated)
- Low Input Offset Voltage 2 mV and Offset Current: 5 nA
- Input Common-Mode Voltage Range Includes Ground
- Differential Input Voltage Range Equal to the Power Supply Voltage
- Large Output Voltage Swing 0 V to V+ − 1.5 V
