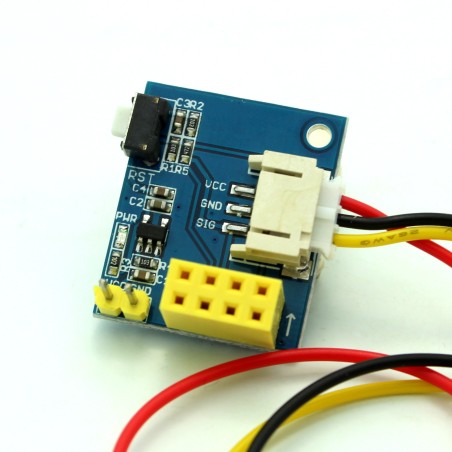

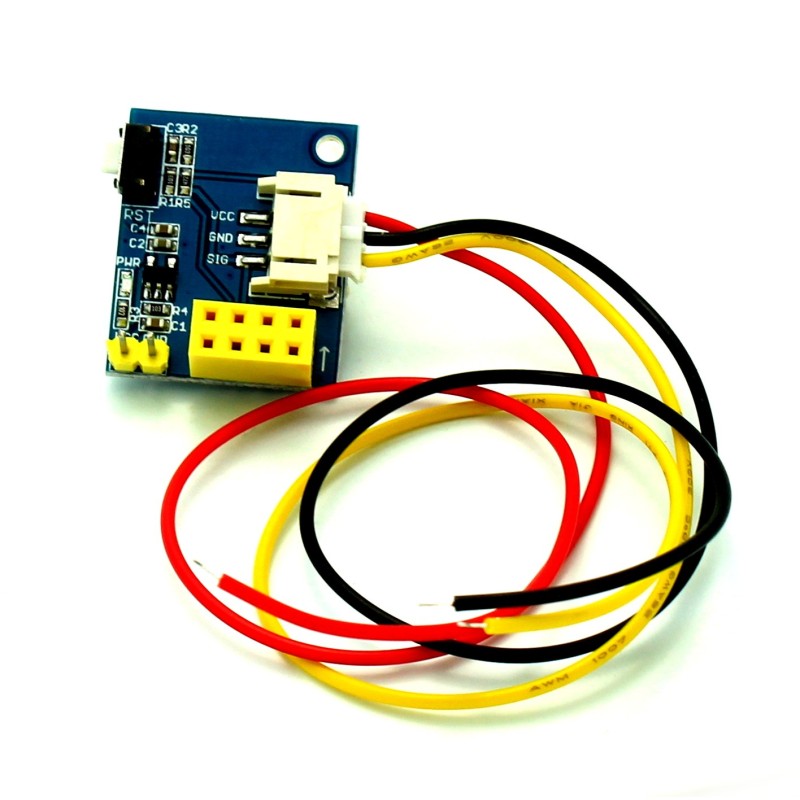

ESP8266 RGB LED Strip Add-on
$5.99
✅SHIPS TODAY
Control Addressable RGB LED Strips with an ESP8266 Wifi Module using this add-on. Works with all our addressable LED strips. Neopixel WS2812 Compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
WS2812 RGB LED control module for ESP8266 Wifi Module. With it, you can easily control addressable RGB LED strips, rings and sticks including WS2812, neopixels, etc. Supports Arduino IDE programming.
- Control Pin: GPIO2
- Interface: 3 Pin JST PH 2.0 connector
- Operating Voltage: DC 3.7V-5V (Please note: The positive supply voltage VCC on the board is connected to the VCC on the WS2812 3PIN connector. Therefore, if your LED stip is 5V powered, use DC 3.7V - 5V power supplies)
- Supports 3.7V lithium batteries
- Works with the following LED strips:
- TS1179 RGB LED Strip 1 meter / 30 pixels per meter
- TS1210 RGB LED Strip 1 meter / 60 pixels per meter
- TS1342 RGB LED Strip 1 meter / 144 pixels per meter
- TS1178 RGB LED Strip 5 meter / 30 pixels per meter
- TS2743 RGB LED Strip 5 meter / 30 pixels per meter / Weather Resistant
- TS-813 RGB LED Strip 5 meter / 30 pixels per meter / Weatherproof
Usage:
- Attach the power supply: 3.7V-5V DC power supply to the VCC GND (2.54mm pin)
- Download the program to your ESP8266 Wifi Module
- Insert the ESP8266 into the 2 x 4 Pin header (in the direction of the arrow) as shown in the image
- Connect the 3 pin JST connector to your addressable RGB LED strip or ring.
TS3288
