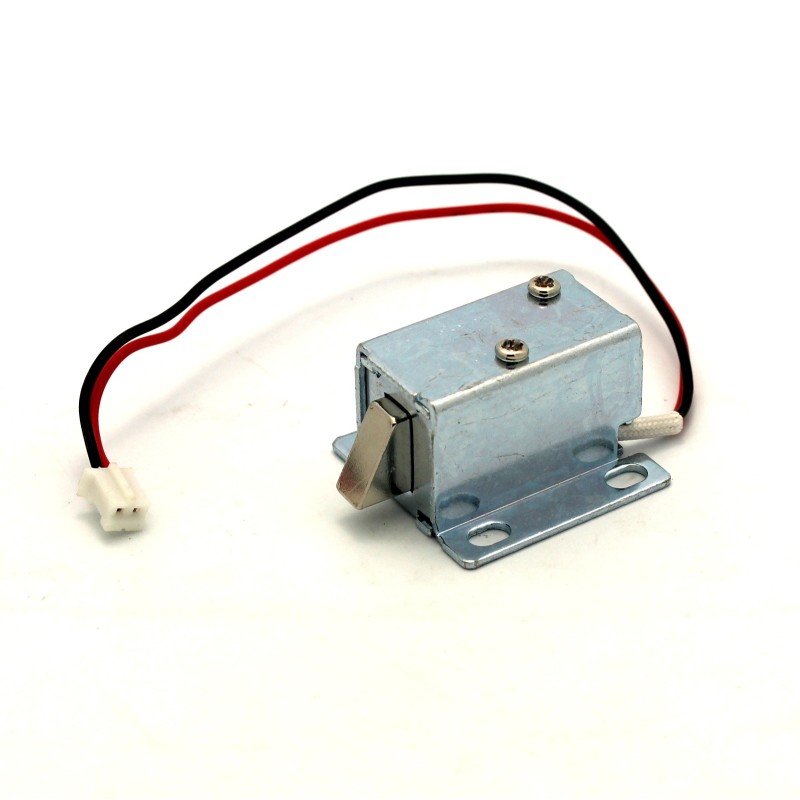

Mini Lock Style Solenoid
$6.99
✅SHIPS TODAY
Electronically lock your cabinets, safes, project enclosures, etc with this Mini Lock Style Solenoid. Takes 6 to 12V DC to unlock.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Dimensions: 1.3 x 1.06 x 0.67 inches (3.3cm x 2.7cm x 1.7cm)
- Weight: 35g
- Operating Voltage: 6V to 12V DC
- Stroke: 4mm
Suction: 4mm≥80g(0.35A)kg
Retention: 0mm≥120g - Mode of operation: power on 90%, interval
- Ambient Temperature: -25C to 80C degree celsius
- Relative Humidity: 45% to 80%
- Atmospheric pressure: 86~106Kpa
- Medium withstand voltage: AC 1000V
- Insulation resistance: 50MΩ
- JST PH connector
- Life expectancy: 10000000 cycles
- Flanges for easy mounting
- Power is only necessary to unlock for energy saving projects!
- Current: 350mA to 600mA
- Anti vibration, anti prying, drilling, open design technology for extra security!
- Power on to retract and unlock
- Power off and the lock pops up and locks. Push the door manually and it will be locked as long as it's not powered.
TS2817
