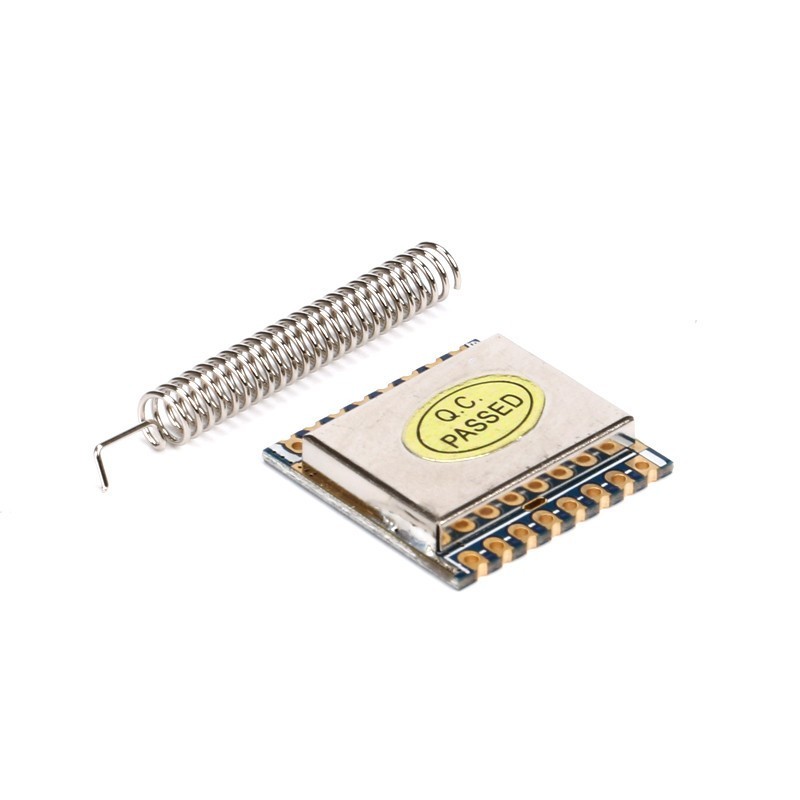

LoRa Radio Transceiver - 433Mhz

Features:

• LoRa Radio Module
• Frequency: 433Mhz
• Long range of 3.1 miles in open space!
• Operating Voltage: 1.8V - 3.6V DC
• Antenna Included!
• FSK/GFKS technology, LoRa (remote) spread spectrum technology
• Half-duplex communication
• Channel rejection ratio: 56db
• High receiver sensitivity -139dbm
• ISM multi-band, no need to apply for frequencies free of charge
• Optional multi-frequency, multi-transfer rate. Can be used in FDMA and FM technologies.
• Intelligent reset, low voltage monitoring, timing wake, low-power mode, sleep mode
• Low power consumption
• Receiving current: 10-12mA
• 256 FIFO TX/RX
• RSSI channel detection
• Transfer Mode: FIFO/Direct mode (recommended FIFO packet mode)
• Configuration: AFC/Air wake-up/low power/Carrier Sense/FEC error correction/AEC encryption
• Operating Temperature: -20C to 70C
• Operating Frequency: 410 to 525Mhz (433Mhz typically)
• Transmission Power: 19 - 20.5dBa

Pinout:
1.ANT: antenna interface
2.GND: signal ground
3.DIO1/DIO2/DIO3/DIO4/DIO5: digital I/O, can be customized
4.VCC: power supply
5.DIOO: digital I/O, can be customized
6.REST: reset
7.SCK: SPI clock input
8.MISO: SPI data output
9.MOSI: SPI data input
10.NSS: SPI chip output
