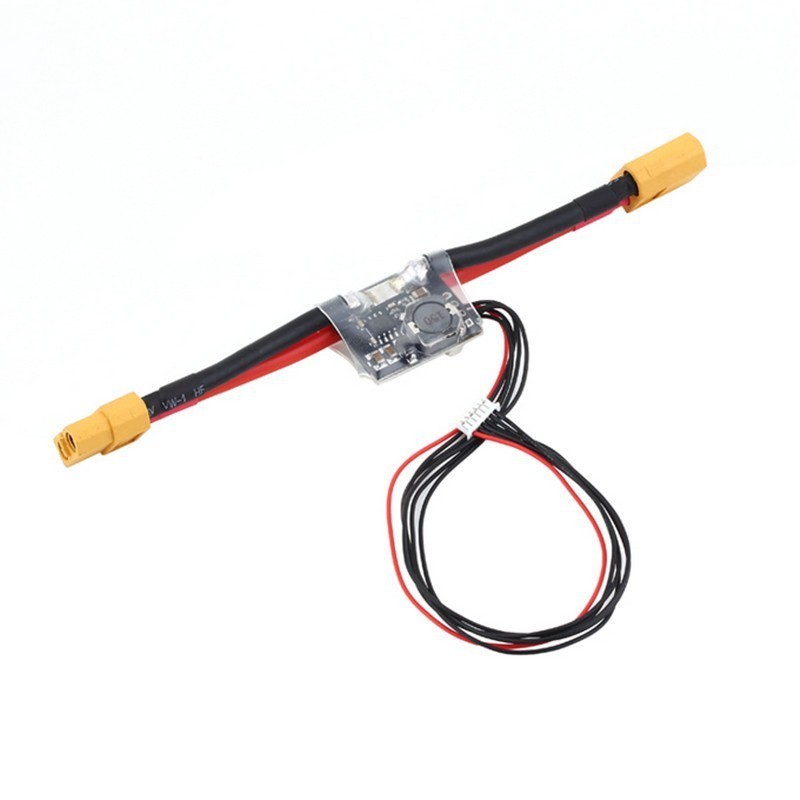

Power Supply Module With BEC for APM Flight Controller With XT60 Connectors

The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.
Used to detect the battery voltage and the battery current and deliver the information to the APM flight control board via two signals. Allows your flight controller to calculate the remaining battery power and estimate the remaining flight time. In addition, the module also comes with BEC functionality so you can output a stable 5.3V DC / 3A maximum continuous current to the flight control board. Sturdy 6 pin connectors so you can maintain a reliable connection between the APM flight control board and the power supply module at all times.

Specifications:

• Max Input Voltage: 30V DC
• Max Current Sensing: 90A
• Size: 2.5cm x 2.1cm x 0.9cm
• Net weight: 25g
• Weight :35g
• Voltage and current measurement configured for 5V ADC
• Switching regulator outputs 5.3V and 3A max
• 6-pos DF13 cable plugs directly into APM 2.5's 'PM' connector (included)
• Note: The power module is only designed to power the APM, an RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power servos. Use your aircraft's ESC/BEC for that.
