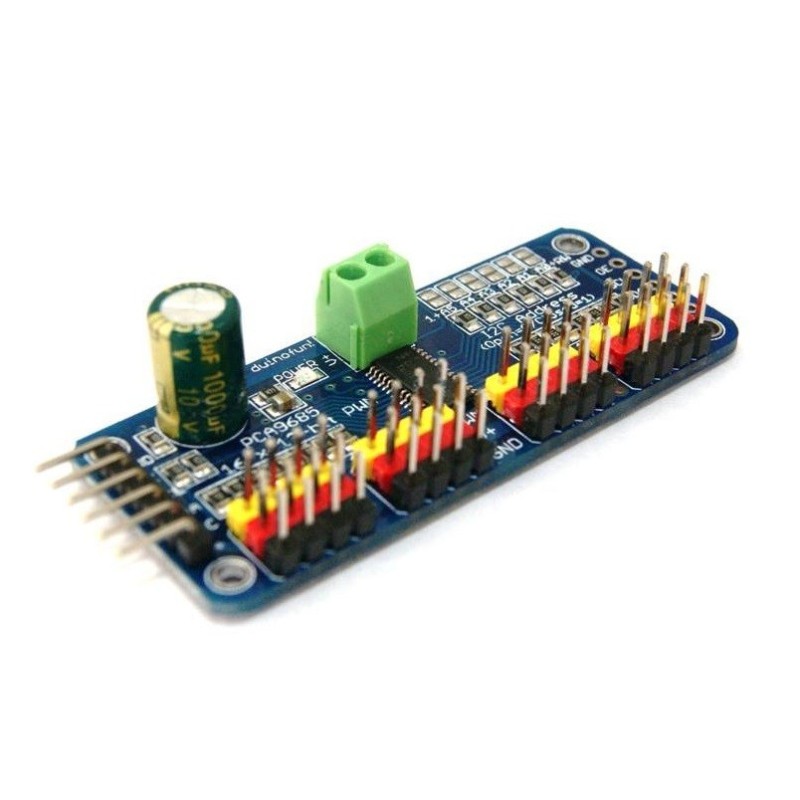

16 Channel PWM Expansion Board: PCA9685
$14.99
✅SHIPS TODAY
Control Servos and PWM devices from your Raspberry Pi or other digital microcontroller using this PWM Expansion Board. Arduino & Raspberry Pi Compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This 16 channel servo/pwm driver is driven by just 2 I2C pins! When you run out of PWM pins on your Arduino or are using a Raspberry Pi that doesn't have PWM capability, this board is your answer. With this PWM Expansion Board you can control up to 16 PWM driven devices from via 2 I2C pins. Can also be daisy-chained to give you up to 992 PWM outputs. Now comes fully assembled!
Features:
- I2C controlled PWM/Servo driver board
- Clock on board
- Operating Voltage: 3.3V - 6V
- 6 I2C Address Select Pins
- Max Daisy-chaining: 62 boards for a total of 992 PWM outputs
- Max PWM frequency: 1.6 kHz
- Resolution: 12 bit
- Configurable Output (push-pull or open-drain)
- Output Enable (OE) allows you to turn off all outputs at once
- Onboard Features:
- Polarity Protection
- Power Indicator LED
- Optional capacitor solder point for smoothing
- Address Select Jumpers
TS1251
