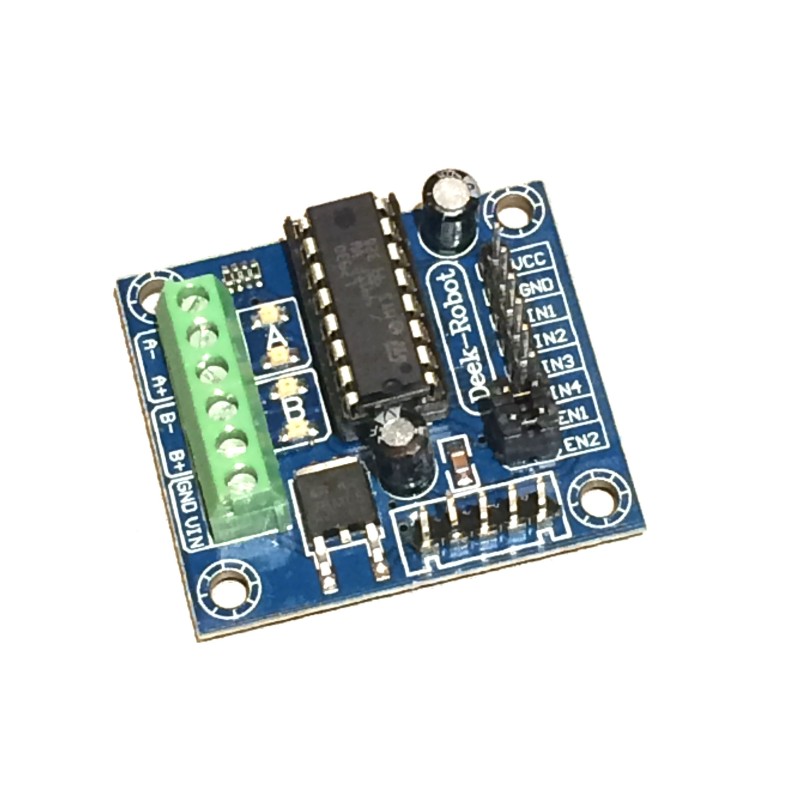

Dual Motor Driver 600mA L293D
$6.99
✅SHIPS TODAY
Control up to 2 small DC motors or 1 stepper motor with this Dual Motor Driver Module based on the popular L293D. Arduino & Raspberry Pi Compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Chipset: L293D
- Dual H-Bridge Module
- Motor Power Supply Voltage: 4.5V-25V
- Maximum Motor Driving Current: 0.6A per bridge (1.2A peak non-repetitive)
- 5V Voltage Regulator on board
- Operating Voltage: 3.3V - 5V (for board logic)
- Overheating protection
- Noise Protection with internal clamp diodes (0V to 1.5V is considered logic low)
- The Device is a monolithic integrated high voltage,high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays, solenoids, DC and stepping motors) and switching power transistors
- To simplify use as two bridges each pair of channels is equipped with an enable input
- Separate supply input is provided for the logic, allowing operation at a lower voltage
- This device is suitable for use in switching applications at frequencies up to 5 kHz.
- Dimensions: 39x34x12mm
- Arduino & Raspberry Pi Compatible
Pinout:
- Out 1 & 2: Motor A
- Out 3 & 4: Motor B
- 12V: Motor Power (Can actually be from 5V-35V, just marked as 12V)
- GND: Ground
- 5V: 5v input (unnecessary if your power source is 7v-35v, if the power source is 7v-35v then it can act as a 5v out)
- EnA: Enables PWM signal for Motor A
- In1: Enable Motor A
- In2: Enable Motor A
- In3: Enable Motor B
- In4: Enable Motor B
- EnB: Enables PWM signal for Motor B
