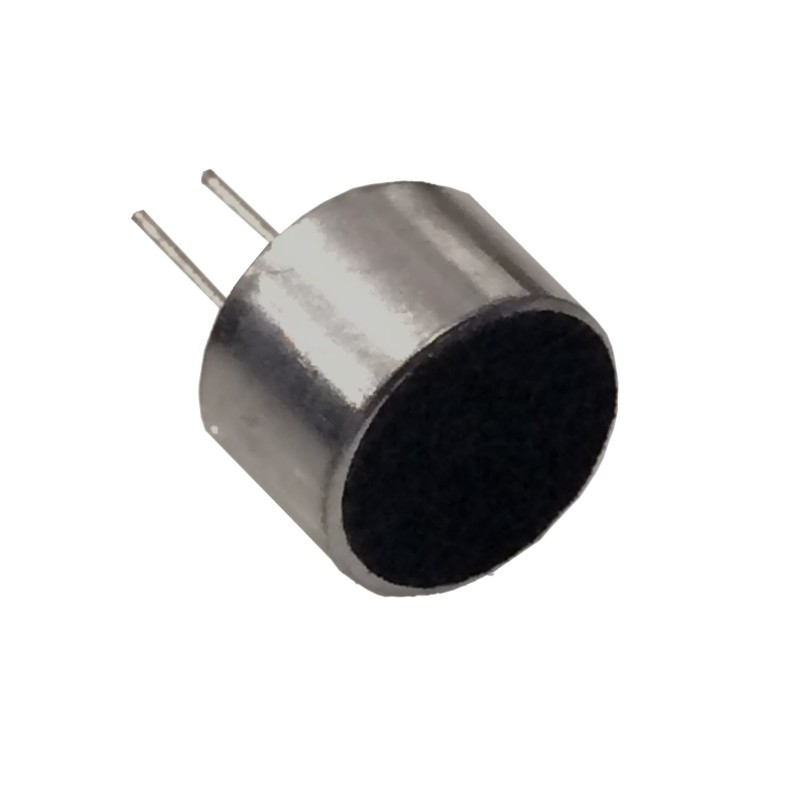

9x7mm Electret Microphone - Omni-directional
$1.39
✅SHIPS TODAY
This omni-directional microphone is breadboard and perfboard mountable with a 9mm diameter so you can pick up on fainter sounds. Arduino & Raspberry Pi compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This simple 9mm microphone is omnidirectional, making it great for projects where you want a microphone for audio detection coming from any direction! Just plug into a breadboard or perfboard or solder wires to the 2 leads for sound detection and recording. When sound causes the film inside this microphone to vibrate, it generates a voltage of a few millivolts. You can read this voltage directly or use an Op Amp to amplify the signal. Arduino & Raspberry Pi compatible.
Specifications:
- Directivity: Omni-directional (can detect sound coming from all angles)
- Sensitivity: -48 to 66 dB
- Max Current Consumption: 0.5 mA
- Signal to Noise Ratio: 58 dBA
- Operating Frequency: 50 - 20000 Hz
- Operating Voltage: 1.5V - 10V DC
- Operating Temperature: -20 C to 60 C
- Dimensions:
- Microphone Diameter: 9mm
- Microphone Height: 7mm
- Wire Leads: 5mm
TS1402
