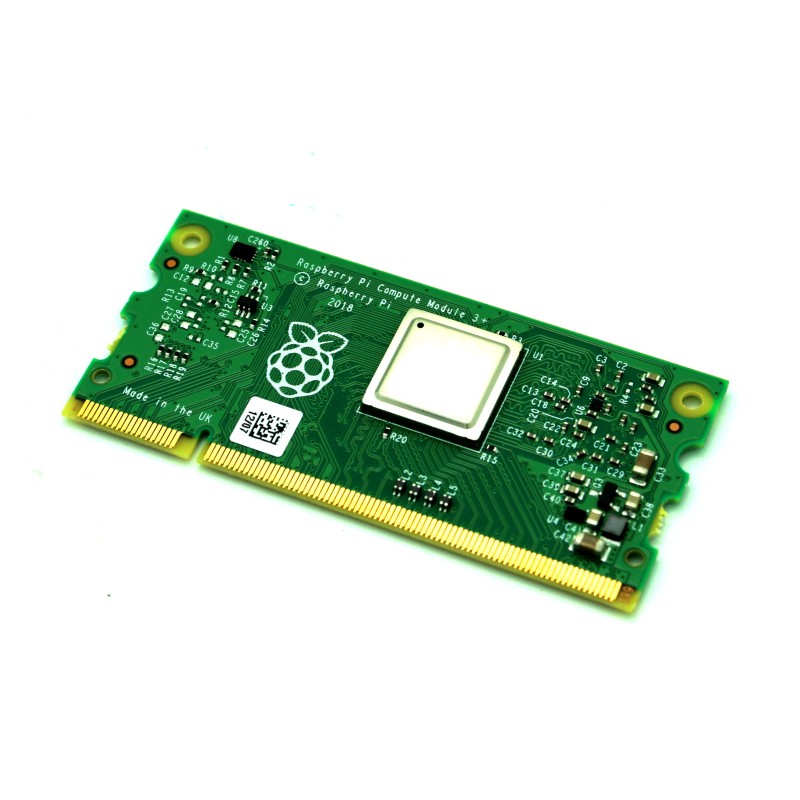

Raspberry Pi Compute Module 3+ Lite (3 Plus) CM3+ Lite

The Raspberry Pi Compute Module 3+ Lite CM3+ Lite has the form factor of a DDR2-SODIMM RAM board and has extra IO interfaces over and above what is available on the standard Raspberry Pi models. Use the Raspberry Pi Compute Module 3+ to start building embedded Raspberry Pi products for mass production.

• Broadcom BCM2837B0 processor
• Without on-board eMMC Flash
• 200PIN SODIMM connector (35U hard gold plating I/O pins)

Includes:

• 1 Raspberry Pi Compute Module 3+ Lite (CM3+ Lite)

Features:

• CM3+ Lite contains a BCM2837 processor (as used on the Raspberry Pi 3 Model B+) and 1GB LPDDR2 RAM
• The BCM2837 processor is an evolution of the BCM2835 processor that can address more RAM (up to 1GB) and the ARM CPU complex has been upgraded from a single core ARM11 in BCM2835 to a Quad core Cortex A53 with dedicated 512Kbyte L2 cache. All IO interfaces and peripherals stay the same and hence the two chips are largely software and hardware compatible.
• Dimensions: 67.6mm x 31mm
• Peripherals:

  48x GPIO
  2x I2C
  2x SPI
  2x UART
  2x SD/SDIO
  1x HDMI 1.3a
  1x USB2 HOST/OTG
  1x DPI (Parallel RGB Display)
  1x NAND interface (SMI)
  1x 4-lane CSI Camera Interface (up to 1Gbps per lane)
  1x 2-lane CSI Camera Interface (up to 1Gbps per lane)
  1x 4-lane DSI Display Interface (up to 1Gbps per lane)
  1x 2-lane DSI Display Interface (up to 1Gbps per lane)

• Software:

  ARMv8 (CM3+) Instruction Set
  Mature and stable Linux software stack
  Latest Linux Kernel support
  Many drivers upstreamed
  Stable and well supported userland
  Full availability of GPU functions using standard APIs
