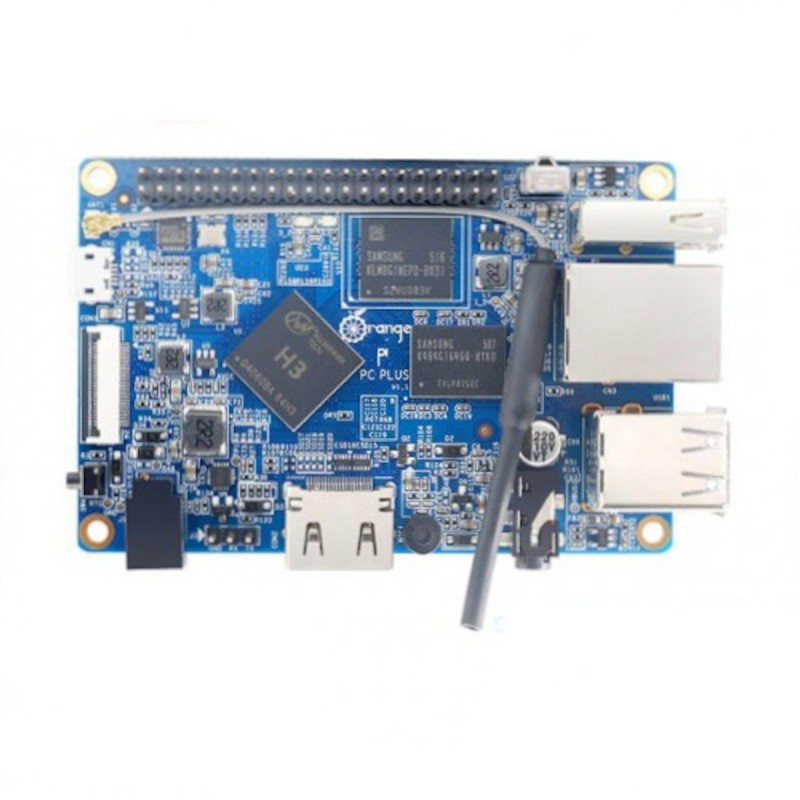

Orange Pi PC Plus: 1GB RAM 1.6Ghz Quad-Core Processor
$67.99
✅SHIPS TODAY
It’s an open-source single-board computer. It can run Raspberry Pi software, Android 4.4, Ubuntu, Debian & Banana Pi Images. It uses the 1.6Ghz quad core Cortex A7 ARM AllWinner H3 SoC, and has 1GB DDR3 SDRAM, 8GB eMMC onboard memory and built in Wifi.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The Orange Pi PC Plus with built in wifi, 1G of RAM and 8GB of onboard memory is a little PC that can be used like any other computer and can run a full range of ARM GNU/Linux distributions including Raspberry Pi images, Ubuntu, Debian, and also Android 4.4! USB mice and keyboard compatible with ethernet connectivity and high-definition video capabilities. The Orange Pi PC Plus boasts a quad core processor (H3 Quad-core Cortex-A7 H.265/HEVC 4K), built in wifi with external antenna, 8GB of onboard storage as well as a microSD card reader to boot off and store to a microSD card. Mali400MP2 GPU @600MHz graphics card for enhanced graphics as well! Other extra features include a built in IR receiver for controlling via a remote control, on board microphone and Power button! Pinout is the same as the Raspberry Pi 3, 2 & B+ models so you have a stronger processor and extra features combined with compatibility!
In summary, the Orange Pi PC Plus is the big brother to the Orange Pi PC with built in wifi and added 8GB of eMMC onboard memory. It also has a quadcore chipset (1.6Ghz Quad core Cortex A7 ARM AllWinner H3), built-in IR receiver, power button, mic, separate debug TTL pins so you don't waste your GPIO pins, the same amount of RAM, same I/O pins as the Raspberry Pi, 3 USB ports, an ethernet port, USB OTG port, camera port, HDMI and composite video/audio outputs and microSD card storage as the Raspberry Pi 3.
Check out our Raspberry Pi / Orange Pi Starter Kit which includes all the accessories you'll need to get started!
Technical Specs:
| CPU |
H3 Quad-core Cortex-A7 H.265/HEVC 4K |
|
|
GPU |
Mali400MP2 GPU @600MHz
Supports OpenGL ES 2.0
|
|
|
Memory (SDRAM) |
1GB DDR3 (shared with GPU) |
|
|
Onboard Storage |
TF card (Max. 64GB) / MMC card slot 8GB EMMC Flash |
|
|
Onboard Network |
10/100 Ethernet RJ45 Wifi with external antenna
|
|
|
Video Input |
A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps |
|
|
Audio Input |
Microphone |
|
|
Video Outputs |
Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS |
|
|
Audio Output |
3.5mm Jack and HDMI |
|
|
Power Source |
DC input 4.0x1.7mm 5V 2A
|
|
|
USB Ports |
Three USB 2.0 HOST, one USB 2.0 OTG |
|
|
Buttons |
Power button |
|
|
GPIO Pins |
40 Pin Header (compatible with Raspberry Pi)
|
|
|
Separate TTL Pins |
UART, ground |
|
|
LEDs |
Power LED & Status LED |
|
|
Remote Control Receiver |
IR receiver (for use with a remote control) |
|
|
Supported OS |
Raspberry Pi images, Android, Lubuntu, Ubuntu, Debian, Banana Pi images |
|
Physical Dimensions & Weight |
||
|
Product size |
85mm × 55mm |
|
|
Weight |
38g |
|
