Orange Pi 3 LTS 2G8G EMMC with HDMI+WIFI+BT5.0, AllWinner H6 SoC,Open Source Board Computer,Run Android 9.0/ Ubuntu/ Debian OS
$58.99
✅SHIPS TODAY

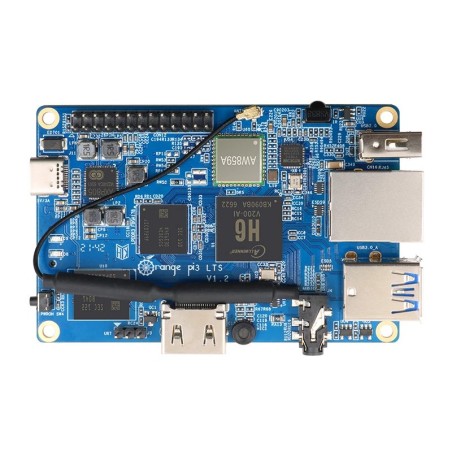

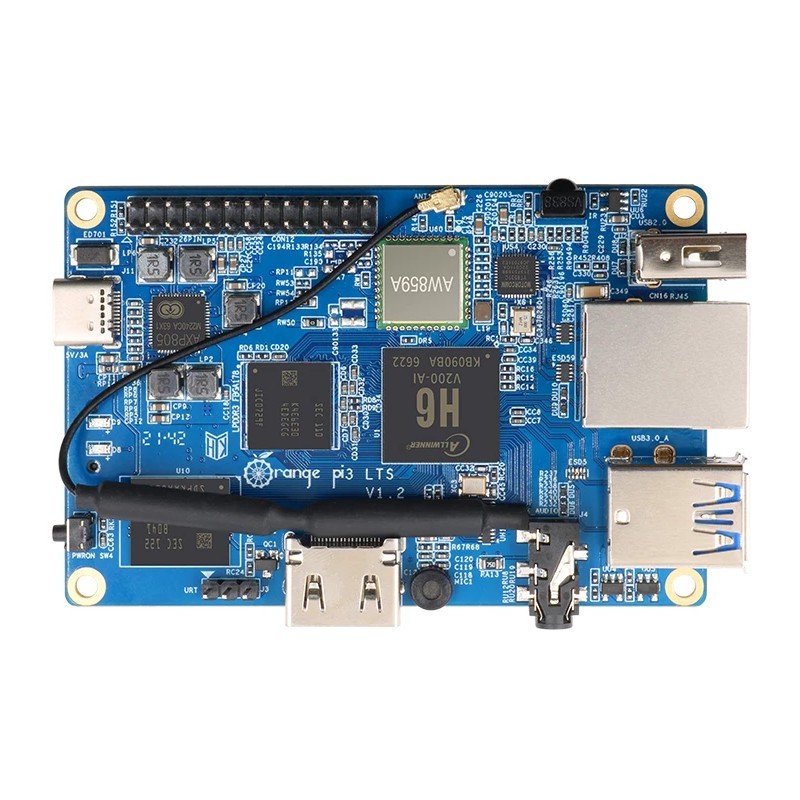

It’s an open-source 64 bit single-board computer. It can run Raspberry Pi software, Android, Ubuntu, Debian & Banana Pi Images. It uses the 1.8Ghz 64 bit quad core Cortex A53 ARM AllWinner H6 SoC, 1000M/100M speed ethernet and has 2GB DDR3 SDRAM.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The Orange Pi 3 LTS with built in 1000M/100M speed ethernet, a 64 bit processor and 2GB of RAM is a little PC that can be used like any other computer and can run a full range of ARM GNU/Linux distributions including Raspberry Pi images, Ubuntu, Debian, and also Android! USB mice and keyboard compatible with ethernet connectivity and high-definition video capabilities. The Orange Pi 3 LTS boasts a 64 bit quad core processor (H6 Quad-core Cortex-A53), high speed ethernet as well as a microSD card reader to boot off and store to a microSD card. Other extra features include a built in IR receiver for controlling via a remote control, on board microphone and Power button! Pinout is the same as the Raspberry Pi 0, 3, 2 & B+ models so you have a stronger processor and extra features combined with compatibility!
In summary, the Orange Pi 3 LTS is the faster brother to the Orange Pi PC Plus in a smaller package than the regular Orange Pi 3 with high speed ethernet connectivity and a 64 bit processor. It also has a quadcore chipset (1.8Ghz Quad core Cortex A53 ARM AllWinner H6), built-in IR receiver, power button, mic, separate debug TTL pins so you don't waste your GPIO pins, the same amount of RAM, same I/O pins as the Raspberry Pi, 3 USB ports, an ethernet port, USB OTG port, camera port, HDMI and composite video/audio outputs and microSD card storage as the Raspberry Pi 3.
Check out our Raspberry Pi / Orange Pi Starter Kit which includes all the accessories you'll need to get started!
Technical Specs:
|
CPU |
Allwinner H6 |
|
|
GPU |
• High-performance multi-core GPU Mali T720 |
|
|
Power management chip |
AXP805 |
|
|
RAM |
2GB LPDDR3 (shared with GPU) |
|
|
Onboard Storage |
• Micro SD card slot |
|
|
Onboard Network |
• YT8531C Chip |
|
|
Onboard WIFI+Bluetooth |
• AW859A Chip |
|
|
Video Output |
• HDMI 2.0a |
|
|
Audio output |
• HDMI Output |
|
|
Power Source |
5V3A Type-C (Recommended power supply: TS3136) |
|
|
USB |
1* USB 3.0 HOST、2* USB 2.0 HOST |
|
|
Low-level peripherals |
26pin connector with1* I2C, 1*SPI, 1*UART &Multiple GPIO Ports |
|
|
Debug serial port |
UART-TX、UART-RX & GND |
|
|
Button |
Power Button (SW4) |
|
|
LED |
Power LED& Status LED |
|
|
IR Receiver |
Support IR Remote Control |
|
|
Supported OS |
Android 9.0、Ubuntu、Debian |
|
| Appearance specification introduction | ||
|
Dimension |
56mm*85mm |
|
|
Weight |
45g |
|
