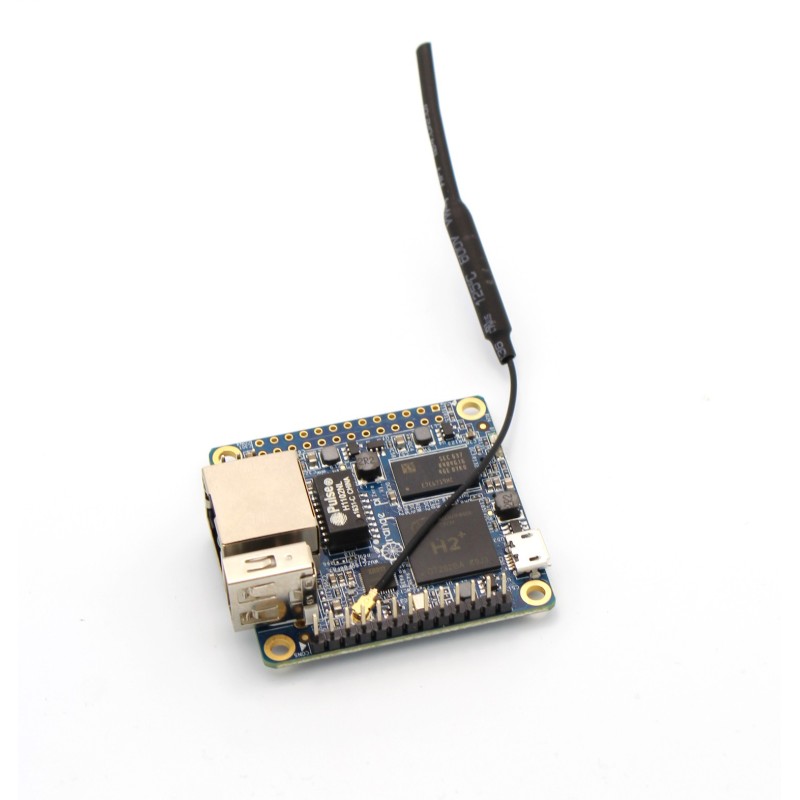

Orange Pi Zero LTS: 256/512MB RAM 1.2Ghz Quad-Core Processor with Wifi
$38.99
✅SHIPS TODAY
The Orange Pi Zero LTS is a competitor to the Raspberry Pi Zero with full sized ports so you don't need clunky adapters, Wifi and Ethernet built in! It can run Raspberry Pi software, Android 4.4, Ubuntu, Debian & Banana Pi Images. It uses the 1.2Ghz quad core Cortex A7 ARM AllWinner H2 SoC, and has 256 or 512MB DDR3 SDRAM (select the Ram size below).
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The Orange Pi Zero LTS boasts built-in Wifi and Ethernet along with full sized ports so you don't need adapters! The Orange Pi Zero features 256 or 512MB of RAM (select above) and is a little PC that can be used like any other computer and can run a full range of ARM GNU/Linux distributions including Raspberry Pi images, Ubuntu, Debian, and also Android 4.4! USB mice and keyboard compatible with wifi connectivity and ethernet. The Orange Pi Zero has a quad core processor (H2 Quad-core Cortex-A7 H.265/HEVC 1080p) uses a microSD card reader to boot off and store to a microSD card and has a Mali400MP2 GPU @600MHz for enhanced graphics! Pinout is the same as the Raspberry Pi's first 26 pins making it a nice alternative to the Raspberry Pi Zero with full-sized USB ports and ethernet and wifi right on board! No clunky adapters like you'll have to deal with for the Raspberry Pi Zero.
In summary, the Orange Pi Zero is the budget version of the Orange Pi with built-in Wifi & ethernet, a quadcore chipset (1.2Ghz Quad core Cortex A7 ARM AllWinner H2), 256 or 512MB of RAM (select above), same first 26 I/O pins as the Raspberry Pi, a full sized USB port, a USB OTG port and microSD card storage.
Check out the fully featured Orange Pi PC for HDMI video output, 2 more USB ports, IR receiver, Composite audio/video out, separate TTL Pins and double the RAM.
Technical Specs:
| CPU |
H3 Quad-core Cortex-A7 H.265/HEVC 1080P |
|
|
GPU |
Mali400MP2 GPU @600MHz
Supports OpenGL ES 2.0 |
|
|
Memory (SDRAM) |
256 or 512MB DDR3 (select which version you want above) |
|
|
Onboard Storage |
TF card (Max. 64GB)/ NOR Flash(2MB Default not posted) |
|
|
Onboard Network |
Wifi with Antenna and Ethernet 10/100M Ethernet RJ45 POE (power over ethernet) capable (off by default) Wifi: XR819, IEEE 802.11 b/g/n |
|
|
Audio Input |
Mic via expansion board on 13pin header |
|
|
Video Output |
Composite via expansion board on 13 pin header |
|
| Power Source |
via USB OTG port (we recommend this power supply)
|
|
|
USB Ports |
One USB 2.0 HOST, one USB 2.0 OTG |
|
|
Buttons |
Power button |
|
|
GPIO Pins |
26 Pin Header (compatible with Raspberry Pi)
13 pin Header with 2x USB ports, IR pin, AUDIO(MIC, AV) best used with expansion board
|
|
|
Separate debug Pins |
debug serial pins |
|
|
LEDs |
Power LED & Status LED |
|
|
Remote Control Receiver |
via 13 pin header with expansion |
|
|
Supported OS |
Raspberry Pi images, Android, Lubuntu, Ubuntu, Debian, Banana Pi images |
|
Physical Dimensions & Weight |
||
|
Product size |
48 mm × 46mm |
|
|
Weight |
26g |
|
