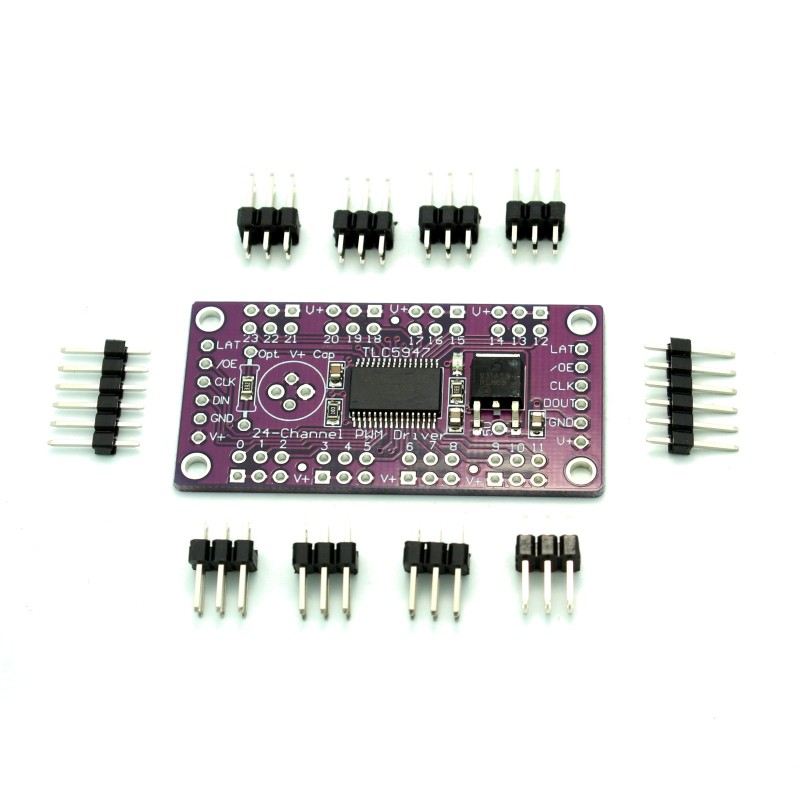

24-Channel 12-bit PWM LED Driver - SPI Interface - TLC5947
$24.95
✅SHIPS TODAY
This chip can control 24 separate channels of 12-bit PWM output for LED control, this board is not good for driving servos. For servos use this servo driver. Works for controlling multiple LEDs from a single Arduino board.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This chip can control 24 separate channels of 12-bit PWM output for LED control, this board is not good for driving servos. For servos use this servo driver.
Features:
- SPI controlled PWM/LED driver board
- 24 Channel
- Constant-current & open drain outputs
- Input Voltage: 5V - 30V
- Uses SPI to communicate
- 3 pins are required to interface:
- Data
- Clock
- Latch
- Boards are chainable
- Output Enable (OE) allows you to turn off all outputs at once
- Max Daisy-chaining: no maximum, just supply enough power and you can chain as many as necessary
- Constant current so LEDs won't flicker or burn out
- Current level: 15mA per channel (can be adjusted by soldering a different resistor
- Resolution: 12 bit
- Arduinio Hookup:
- LAT: Arduino D6
- OE: no connection
- CLK: Arduino D5
- DIN: Arduino D4
- GND: Arduino GND
- V+: Arduino VIN or external power supply
