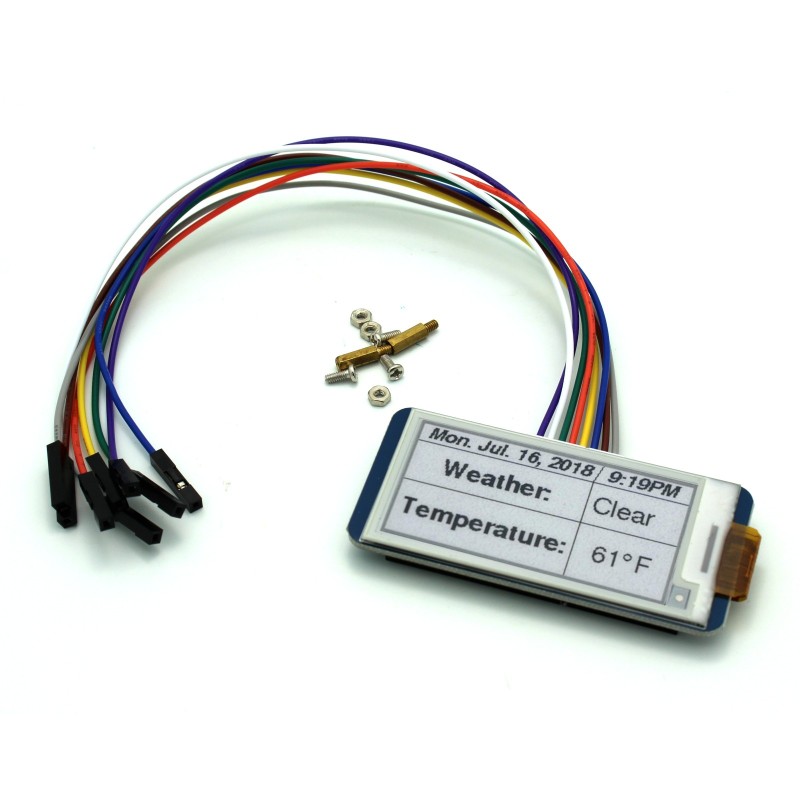

E-ink / E-Paper Display for Raspberry Pi Zero
$29.99
✅SHIPS TODAY
e Ink / ePaper Display Raspberry Pi Zero Hat measuring 2.13 inches. Low power consumption and stays locked on the last loaded screen even when not powered!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- 2.1 inch eInk / ePaper Display for Raspberry Pi Zero & Raspberry Pi Zero W
- Can also be used with larger Raspberry Pi's with 40 pins including the Pi 3 B+
- Hat design: fits directly on top of the Raspberry Pi's 40 pin GPIO
- Resolution: 250x122
- Ultra low power consumption that stays locked on the last loaded screen (Power only used to refresh the image!)
- Wide viewing angle
- Looks great even in bright sunlight
- Preserved solder pads for SPI interface suitable for connecting with other controller boards like Arduino, STM32, etc.
- Communication Protocol: SPI (both 3 and 4 wire)
- Operating Voltage: 3.3V
- Outline dimension: 65mm × 30.2mm
- Display size: 23.71mm × 48.55mm
- Dot pitch: 0.194 × 0.194
- Grayscale: 2
- Full refresh time: 6s
- Refresh power: 26.4mW(typ.)
- Standby power: <0.017mW
- Viewing angle: >170°
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | 3.3V |
| GND | Ground |
| NC | NC |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, low active |
TS2902
