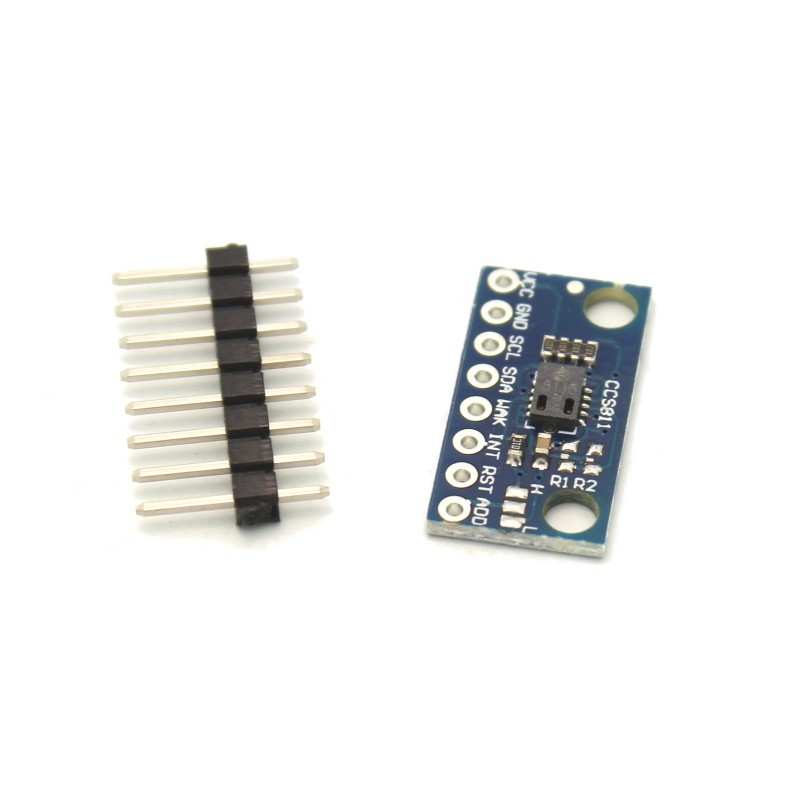

Air Quality Sensor: VOC & eCO2 - CCS811
$19.88
✅SHIPS TODAY
Air Quality Sensor for recording the (TVOC) Total Volatile Organic Compound reading and (eCO2) equivalent carbon dioxide reading indoors.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Air Quality Sensor for measuring the TVOC and eVOC values indoors
- TVOC reading (Total Volatile Organic Compound)
- eCO2 reading (equivalent carbon dioxide)
- Chipset: CCS811
- eCO2 concentration range: 400 to 8192ppm
- TVOC concentration range: 0 to 1187ppb
- Useful for detecting Amines, Alcohols, Organic Acids, Aldehydes, Ketones, Aliphatic and Aromatic Hydrocarbons
- Serial Communication Protocol: I2C
- ADC onboard so no conversion is needed
- Low power consumption for battery powered projects
- Operating Voltage: 1.8V to 3.6V
- Current Consumption:
- When measuring: 26mA
- Average when measuring every 60 seconds: 0.7mA
- Sleep Mode: 19uA
- I2C Frequency Supported: 10 to 400khz
- Pinout:
- VCC: 1.8V to 3.6V Power
- GND: Ground (0V)
- SCL: I2C Clock Pin (to microcontroller)
- SDA: I2C Data Pin (to microcontroller)
- WAKE: active low input that should be held low during I2C transmission
- INT: optional active low output that is pulled low at the end of a reading and when a threshold is met
- RST: optional active low input for Reset
- ADDR: address set pin (when low the I2C address is 0x5A; when high the I2C address is 0x5B)
TS2572
