Beaglebone Black Wireless
$258.62
✅SHIPS TODAY

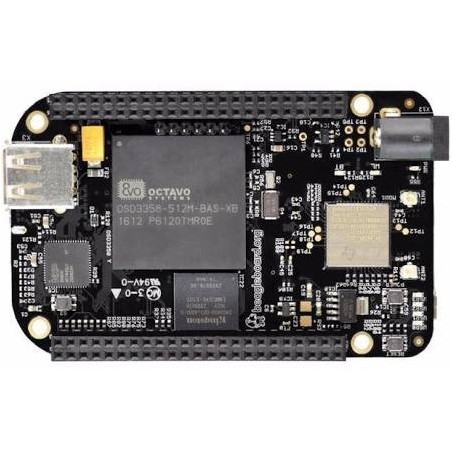

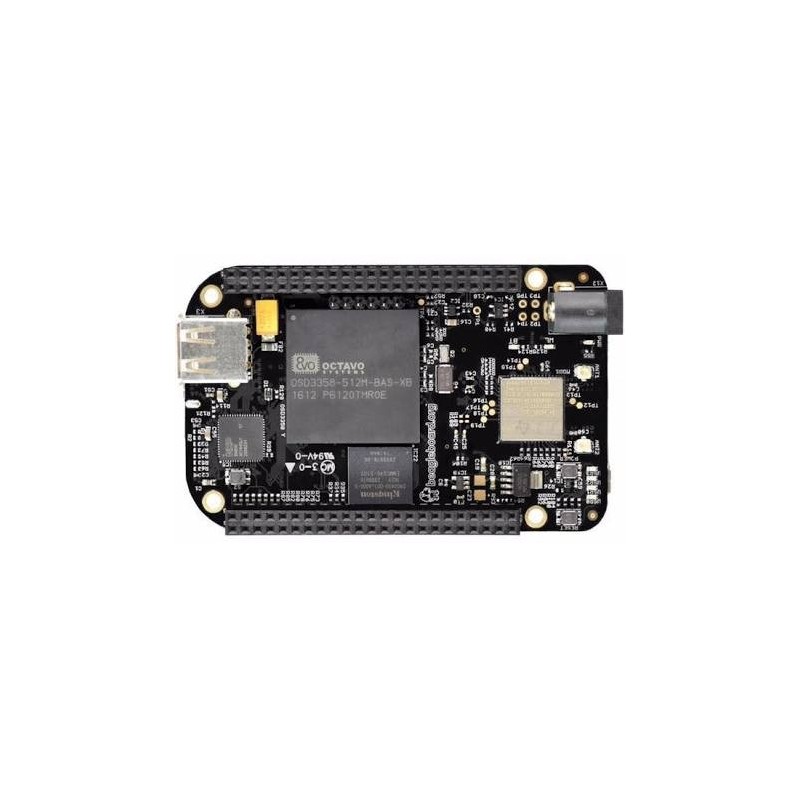

Beaglebone Black Wireless with USB Cable. High performance Pocket PC with integrated Bluetooth Low Energy (BLE) and Wifi (802.11 b/g/n 2.4GHz).
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Debian android, Ubuntu & Cloud9 IDE on Node.js w/ BoneScript library software compatibility
- 802.11 b/g/n 2.4GHz WiFi
- High speed USB 2.0 client, high speed USB 2.0 host port, UART0 serial port & Bluetooth 4.1 with BLE
- Optional onboard 20 pin CTI JTAG, serial header debug support
- Micro USB or DC Jack, 5VDC external Via expansion header power source
- Reset, boot & power button, 4 user configurable LEDs, Wi-Fi and BT LEDs, power LED
- HDMI D type interface, LCD interface, stereo audio over HDMI interface
- LCD, UART, eMMC & ADC, I2C, SPI, PWM and expansion interfaces
- Micro HDMI output
- 512MB DDR3 800MHZ RAM
- 4GB Embedded eMMC Flash with Debian Distribution
- microSD Card Slot
- 5.5x2.1mm DC Jack (here is the recommended power supply)
- Includes:
- Beaglebone Black Wireless board
- USB cable
|
|
BeagleBone Black (or BeagleBone Black Wireless) |
|
System on Chip Main Processor |
Texas Instruments Sitara AM3358 |
|
ARM Cortex-A8 |
|
|
Maximum Main Processor Speed |
1GHz |
|
Co-processors |
2xPRU, ARM Cortex-M3 |
|
Analog Pins |
7 (4-wire touchscreen capable) (1.8V) |
|
Digital Pins |
65 |
|
Memory |
512MB DDR3 4GB eMMC flash on-board microSD card slot |
|
USB |
USB 2.0 miniUSB 480Mbps Host/Client Port (Black) USB 2.0 microUSB 480Mbps Host/Client Port (Wireless) USB 2.0 Type-A Host Port |
|
Network |
10/100 Ethernet (Black-only) 2.4GHz WiFi (Wireless-only) Bluetooth 4.2/BLE (Wireless-only) |
|
Video |
microHDMI Cape add-on boards |
|
Audio |
microHDMI cape/USB add-ons Bluetooth (Wireless-only) |
|
Supported Expansion Interfaces |
4x UART 16-bit LCD interface 2x I2C 2x SPI PWM Timer A/D CAN Pulse Capture Quadrature Encoder PRU GPIO PRU UART PRU Pulse Capture |
|
On-board Sensors |
N/A |
TS2512
1 Item
Specific References
- EAN13
- 688907974749
