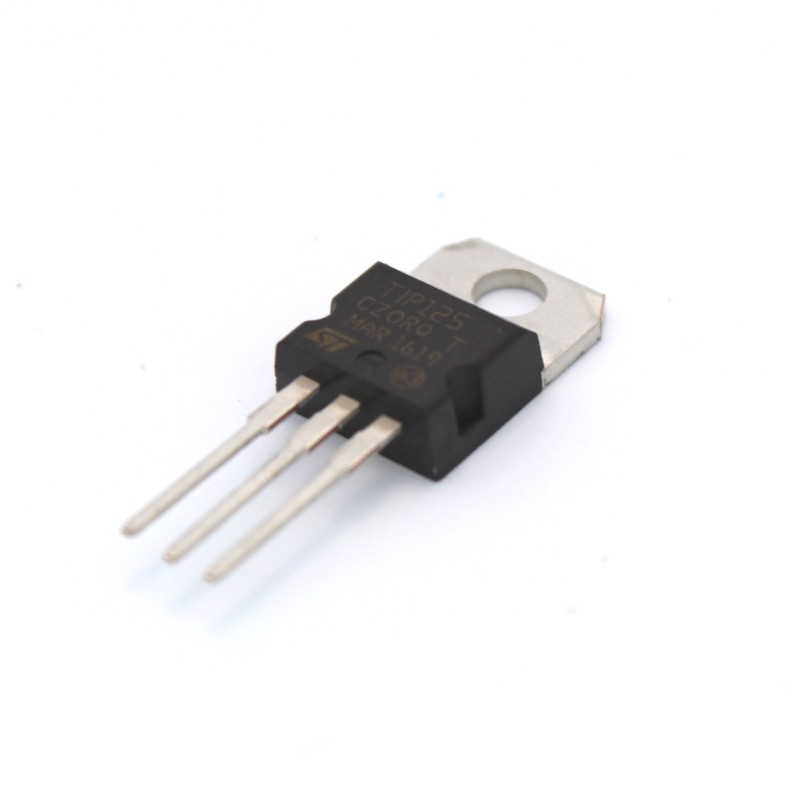

TIP125 PNP Power Darlington Transistor: 60V 8A
$1.99
✅SHIPS TODAY
Use this TIP125 PNP Darlington Power Transistor to control something that draws up to 60V and 8A from your low power circuits & microcontrollers.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The TIP125 is a High Power PNP Transistor. Controlling high power devices is easy using the TIP125. Just attach the center pin to a 2.5V - 5V control signal and the other two pins to the high powered item you'd like to control. Complement to the NPN TIP120 Transistor.
Specifications:
- Transistor Type: PNP - Darlington
- Max Collector Current: 5A
- Max Collector Emitter Breakdown: 60V
- Max Vce Saturation: 4V @ Ib=20mA & Ic=5A
- Max Collector Cutoff Current: 500µA
- Min DC Current Gain (hFE): 1000 @ Ic=3A, Vce=3V
- Max Power: 2W
- Mounting Type: Through Hole
- Package: TO-220
TS2049
