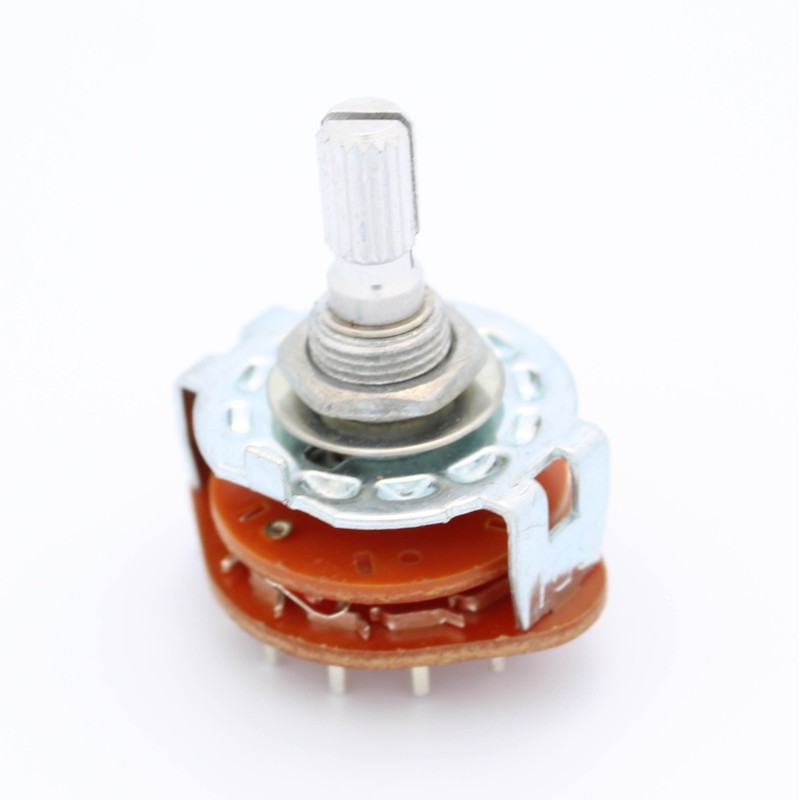

6 Position Rotary Switch: 2P6T
$2.99
✅SHIPS TODAY
Rotate this rotary switch to connect the 2 common pins to any of the 6 options! This is a 1 to 6 switch with 2 Poles!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- 2P6T (2 Pole, 6 Throw)
- Rotary Switch
- When the switch is rotated, the 2 middle pins get connected with one of the 6 pins beside it
- Useful for selecting between 6 options on 2 circuits at once with a single switch
- Rating: 30V DC 1A
- Contact Resistance: DC 5V AOR 1kHz 25m ohm
- Insulation Resistance: 100mohm min. at 500V DC
- Shaft Diameter: 6mm / 0.24"
- Shaft Length: 20mm/ 0.8"
- Knurled Shaft for easy grip
- Number of Pins: 14
- Dimensions: 26 x 38mm / 1" x 1.5"(Max.D*H)
- Color: As shown
- Material: Metal
TS1812
