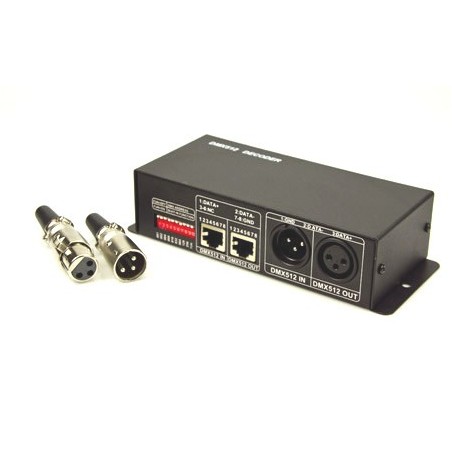

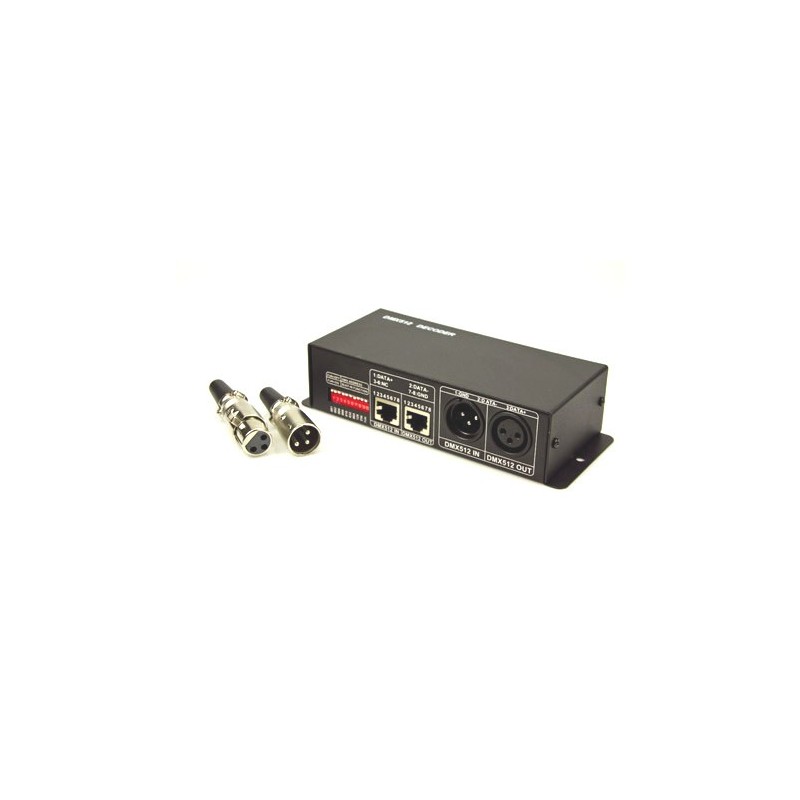

DMX 512 Decoder / Controller for RGB LED Strips

Features:

• DMX Controller for 4-Pin RGB LED Strips
• Allows you to control 12V 4-Pin RGB LED Strips (with 3 channels, Red Green & Blue) via DMX or standalone mode with the onboard DIP switches
• Input voltage: 12V - 24V DC (for 12V RGB LED strips, use 12V)
• Max output current: 8A per color channel
• Max output power: 288W - 576W
• Output: 3CH
• Connection mode: Common Anode (+)
• Product size: 6.5" x 2.6" x 1.6" (16.5 x 6.7 x 4.1cm)
• Product weight: 310g / 10.9oz
• Converts DMX to PWM signals for driving LEDs
• Output: Three CMOS output RGB
• Maximum Load Current: 8 Amps/channel (24 Amps total)
• Control Methods:
  • DMX512 RJ45
  • DMX512 3-pin XLR
  • Standalone DIP switches
• Standalone Modes: 9 total (7 static and 2 dynamic)
• Adjustable DMX Address so you can use up to 511 controllers simultaneously!
• Operating Temperature: -25C to 60C
• Pinouts:
  • V+: 12V DC
  • V-: Ground
  • Com: LED strip Ground
  • CH1: R
  • CH2: G
  • CH3: B

DIP Switch Settings:

• When Switch 10 is DOWN, Switches 1 through 9 are used to set the device address in Binary
  • Example: If you want to set the device address for this DMX decoder to 37, you'd set the switches to the binary code 101001000 which corresponds to 1+4+32 for a total of 37 as follows:
    • Switch 1 (leftmost): UP
    • Switch 2: DOWN
    • Switch 3: UP
    • Switch 4: DOWN
    • Switch 5: DOWN
    • Switch 6: UP
    • Switch 7: DOWN
    • Switch 8: DOWN
    • Switch 9: DOWN
    • Switch 10: DOWN (this sets Standalone Function Mode to OFF)

• When Switch 10 is UP, Switches 1 through 9 are used to set the standalone function mode to 1 of the 9 options below (only set one switch to the UP position at a time; if more than one is left UP, the greatest value will take priority)
  • Example: If you want to set the standalone function mode to 7 so your LED strip is white, you'd set switch 7 to UP and all other switches 1 to 9 to down:
    • Switch 1 (leftmost): DOWN
    • Switch 2: DOWN
    • Switch 3: DOWN
    • Switch 4: DOWN
    • Switch 5: DOWN
    • Switch 6: DOWN
    • Switch 7: UP
    • Switch 8: DOWN
    • Switch 9: DOWN
    • Switch 10: UP (this sets Standalone Function Mode to ON)
• Standalone Function Modes:
  • Mode 1: Red
  • Mode 2: Green
  • Mode 3: Blue
  • Mode 4: Yellow
  • Mode 5: Purple
  • Mode 6: Cyan
  • Mode 7: White
  • Mode 8: Seven Color Jump Change (for this mode, you can set speed by turning on one of switches 1 through 7 with 7 being the fastest)
  • Mode 9: Seven Color Fade Change (for this mode, you can set speed by turning on one of switches 1 through 7 with 7 being the fastest)
