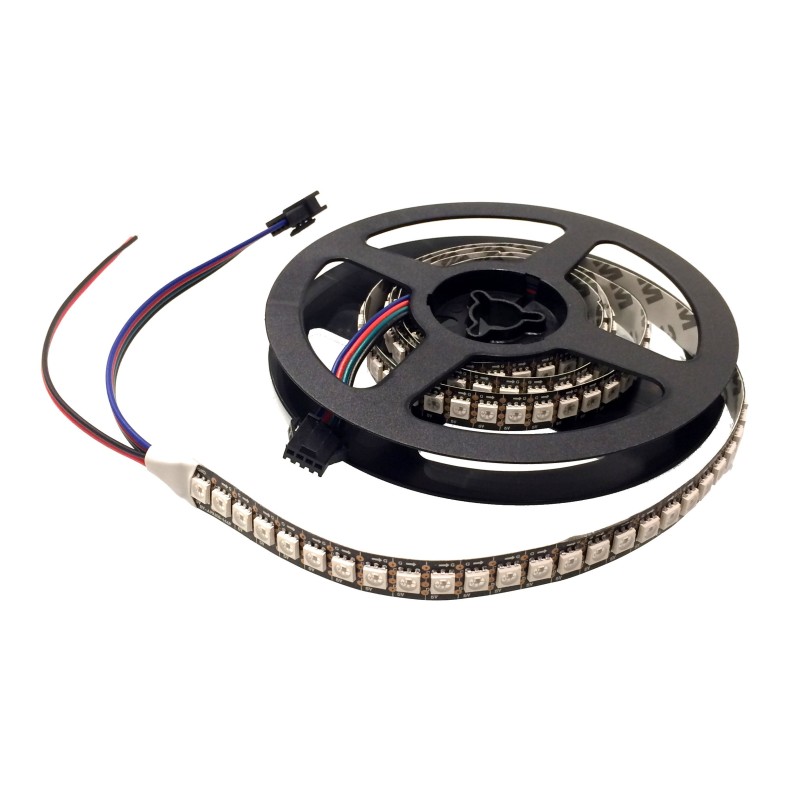

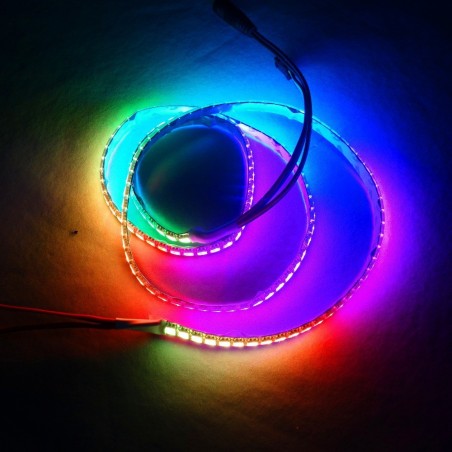

High Speed Addressable RGB LED Strip 144 Pixel - 1m (Dotstar Compatible)

When you need an addressable LED strip with a high refresh rate for photography, POV, etc, this is the strip for you!

Create cool lighting displays where each LED can be controlled all on it's own and turn on/off, change color and brightness by itself. Use an Arduino board to control the strip using just 2 pins just like our LED Sequins and Addressable RGB LEDs. Each LED has a chip inside it to control it's behavior on it's own which allows you to cut the strip after any single LED if you want to use a shorter length!

  Specifications:

• LED Type: 5050 SMD Pixel (Individually Addressable Dotstar Compatible)
• Chipset: APA102
• SPI Addressable with 2 pins (data and clock)
• Arduino & Raspberry Pi Compatible (For Raspberry Pi and other 3.3V microcontrollers, be sure to use a Logic Level Converter on the Data and Clock Pins)

• Size: Length 1 meters x Width 1.2cm x Thickness 0.5cm

• Emitting Color: RGB (every LED can be a different color at the same time)

• Grey Scale: 256
• 8 bit color
• PWM Rate: 20kHz (much faster than standard WS2812 addressable LEDs at 0.4kHz)
• Data Input Rate: Up to 32MHz!

• Working Voltage: 5V DC

• LED Quantity: 144 LEDs

• Max DC Current Draw: 8.64A/meter

• JST Connector Pinout:
  • VCC: Red Wire, 5V
  • GND: White Wire, 0V
  • DIN: Green Wire, Data In
  • CLK: Clock Signal (pulse this pin after every bit of data sent on DIN. By using this, you can set the speed of your data transfer)
  • DOUT: Data Out (Green wire, to next strip)
• Every LED is cuttable!

Use this power supply to power the whole strip and this controller.
