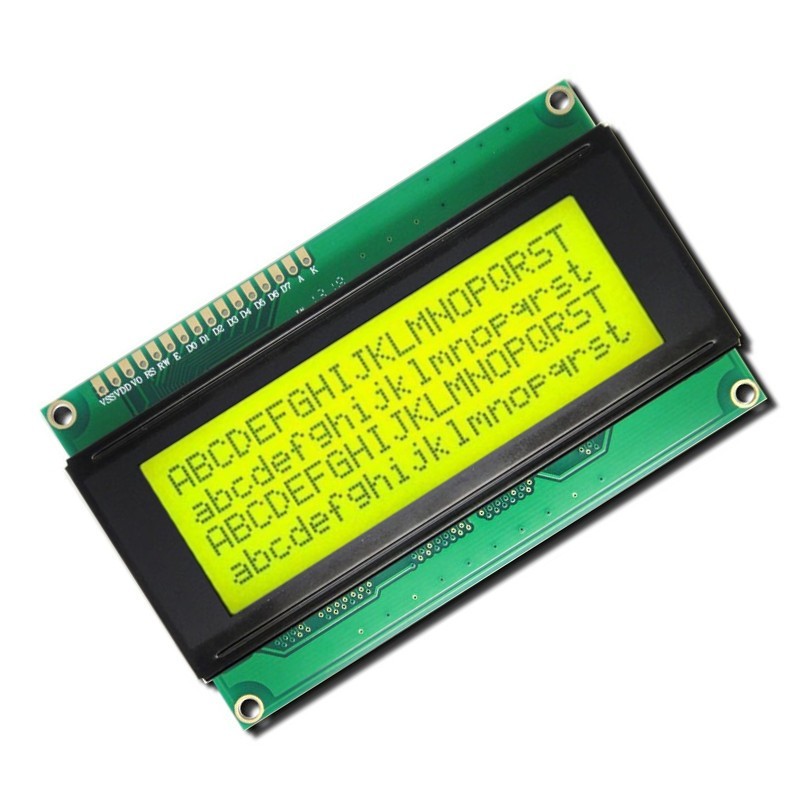

20x4 LCD Module (Black Text / Green Backlight)
$14.99
✅SHIPS TODAY
Add this 20x4 LCD Module to your projects for a 80 character display with black text on a green backlight. Arduino & Raspberry Pi compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This LCD module allows you to display 80 characters (20 per row) on a green backlit screen. Solder on some male header pins to stick into a breadboard or solder wires directly to the board. Black text on a green illuminated background for easy viewing day or night!
Specifications:
- 20x4 LCD Module
- Arduino & Raspberry Pi compatible
- Text Color: Black
- Backlight: Yes
- Backlight Color: Green
- Pinout:
- VSS: Ground, 0V
- VDD: Logic Power Supply, 0.3V - 7V
- VO: Operating Voltage for LCD, Min voltage: VDD-15V, Max voltage: VDD+0.3V
- RS: Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
- R/W: Read / Write (H: Read Mode, L: Write Mode)
- E: Enable Signal
- D0: Data Bit 0
- D1: Data Bit 1
- D2: Data Bit 2
- D3: Data Bit 3
- D4: Data Bit 4
- D5: Data Bit 5
- D6: Data Bit 6
- D7: Data Bit 7
- A: Backlight Anode
- K: Backlight Cathode
- Pin spacing: 2.54mm (0.1") (like our header pins)
TS1692
