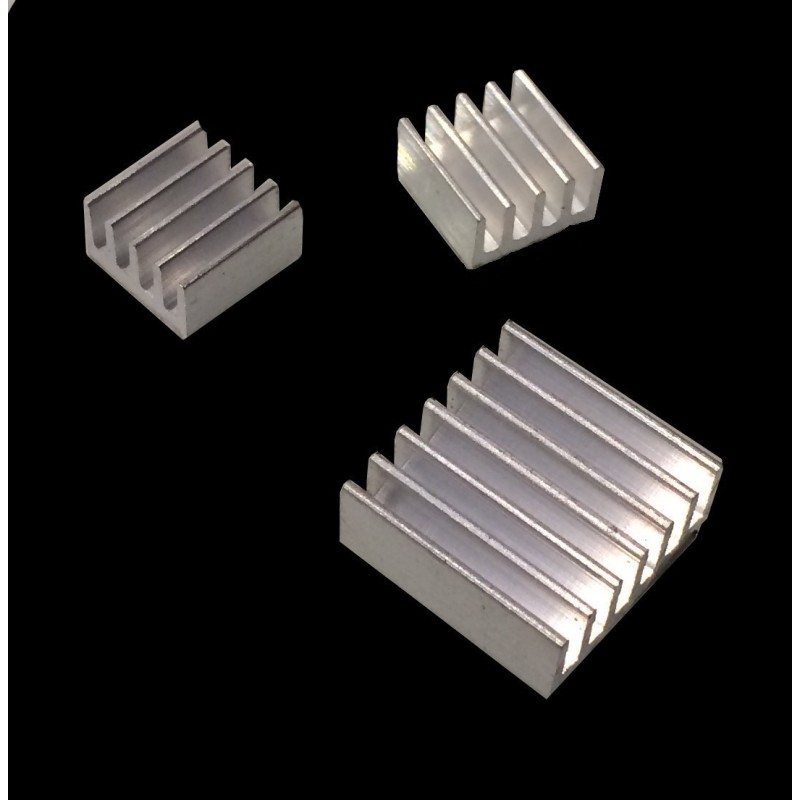

Self-Adhesive Raspberry Pi Heatsink Set 3pc

Peel and stick to your Raspberry Pi's main chips to allow fast heat dissipation when overclocking or running heavy load processing applications. By adding these aluminum heatsinks to the SoC, Voltage Regulator and LAN9512 Chip on your Model A and B or to the SoC and LAN9512 on the B+ or just the SoC on the A+, you give them extra surface area for heat dissipation. Don't burn up your Raspberry Pi with heat damage, add these heat sinks to protect your motherboard from heat damage!

Contents:

• 1 14mm x 14mm x 5mm Heatsink
• 2 9mm x 9mm x 4mm Heatsink

Specifications:

• 3pc Heatsink Set for Raspberry Pi 4 B, 3 B+, 3 B, 2, A, B, A+ and B+
• Material: Aluminum
• Adhesive backed
• Peel and stick

• Installation Instructions for Model A+:
  • Affix the 14mm Heatsink on the SoC Main Chip
  • Apply firm pressure to the heatsink for a strong contact

• Installation Instructions for Raspberry Pi 3 Model B+ Raspberry Pi 3 Model B Raspberry Pi 2 Model B and Raspberry Pi 1 Model B+:
  • Affix the 14mm Heatsink on the SoC Main Chip
  • Affix a 9mm Heatsink on the LAN9512
  • Apply firm pressure to both heatsinks for a strong contact
• Installation Instructions for Model A and B:

  • Affix the 14mm Heatsink on the SoC Main Chip
  • Affix a 9mm Heatsink on the LAN5912
  • Affix a 9mm Heatsink on the Voltage Regulator
  • Apply firm pressure to all 3 heatsinks for a strong contact
