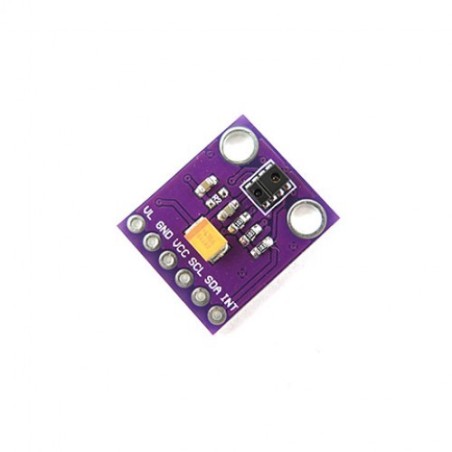

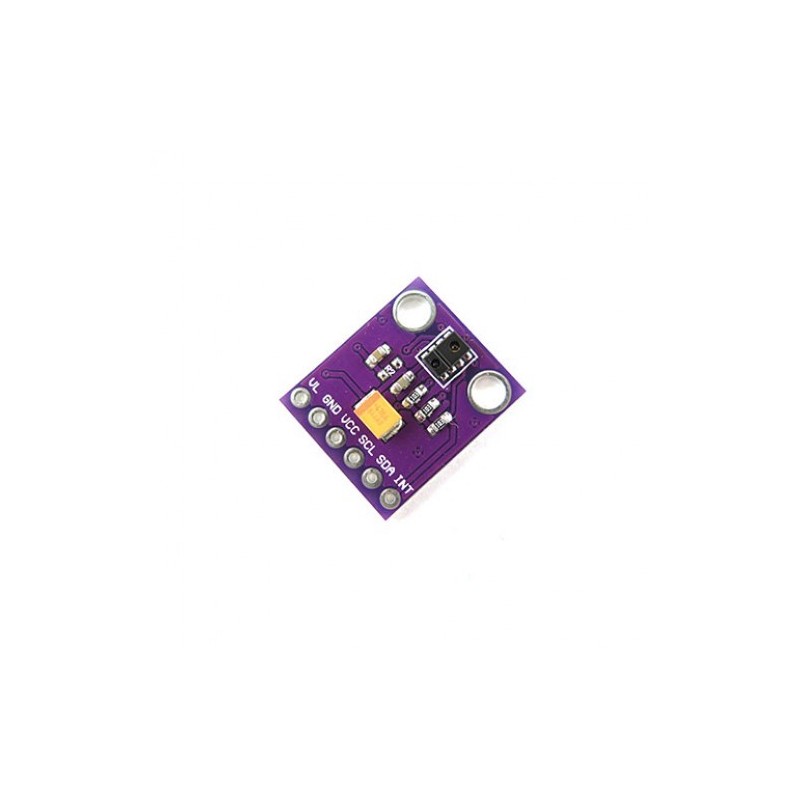

Ambient Light and Proximity Sensor APDS-9930
$14.99
✅SHIPS TODAY
This device has visible spectrum ambient light detection as well as close range infrared proximity detection all in one neat I2C package. Get the best of both worlds with ambient light detection when something is far away and infrared proximity detection when the object is so close that it blocks most of the light.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The APDS-9930 breakout is an ambient light sensor (ALS) and close range proximity sensor all in one with I2C interface.The ambient brightness sensor uses dual light diodes to approximate human visual response properties of 0.01 lux low lumen illumination. This means it will work well in both dark and light environments! High sensitivity allows this device to operate in dark areas. Proximity sensor ensures that when something is so close it blocks most of the light, you can continue to detect distance accurately with 10 cm infrared proximity detection. From bright sunlight into the darkness of a dimly lit room this sensor will continue to operate with minimal interference affects. High efficiency optical lens provides extra effective infrared transmission and reception which reduces power consumption. This sensor also has a built in low power mode to bring the average power consumption down even further.
Features:
- Ambient Light Sensor and Infrared proximity sensor all in one!
- Dual environmental brightness receptors to attempt to replicate human visual response in low light situations
- Programmable Interrupt with upper and lower thresholds
- 16 bit resolution
- Works well in both bright daylight and low light situations
- Low lumen performance: 0.01 Lux
- Proximity detection range: Fully calibrated to 10 cm detection
- Onboard infrared LED and synchronous LED driver
- Programmable wait timer for low power situations
- Wait state power: 90mA (typical)
- Wide Programmable time range: 2.7 milliseconds to 8 seconds
- I2C interface
- Up to 400kHz (I2C fast mode)
- Dedicated interrupt pin
- Sleep mode power: 2.2 mA (typical)
- Pin Spacing: 0.1" (2.54mm)
- Dimensions LxWxH: 1.55" x 0.93" x 0.05" (39.4 x 23.6 x 1.35 mm)
Applications:
- LCD backlight dimming based on ambient light
- Disable the touch screen on a mobile phone when placed by ear
- Multiple Presence detection: via ambient light for long distance as well as accurate infrared proximity detection for short range up to 10cm (3.93")
- automatically enabled hands-free mode
- automatic pop-up menu
- digital camera eye sensor
Useful Resource: https://github.com/Davideddu/APDS9930
