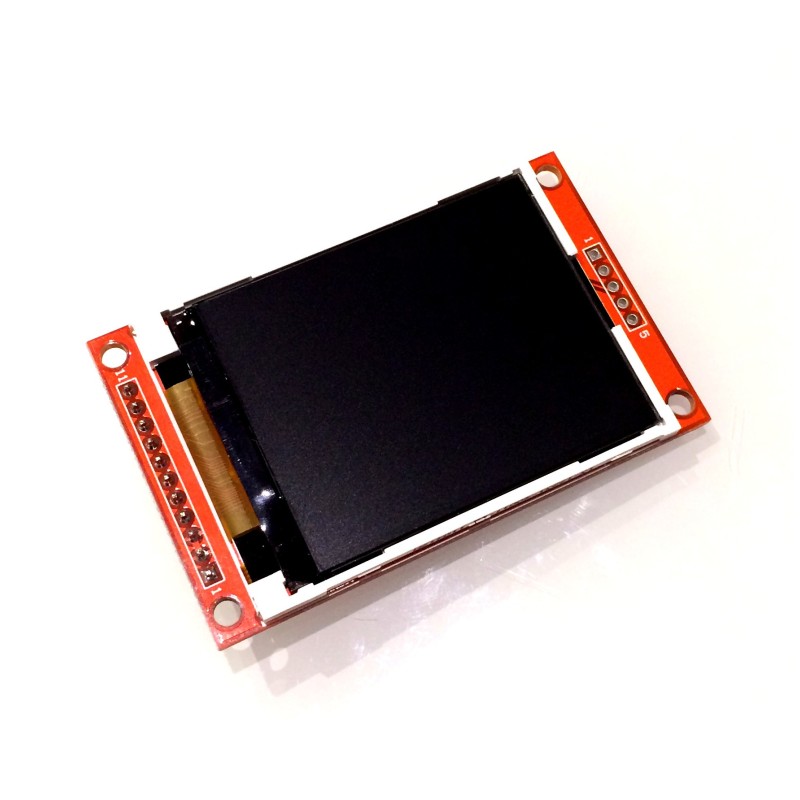

Raspberry Pi 2.2" TFT LCD Display Module: SPI
$15.95
✅SHIPS TODAY
This 2.2" TFT LCD Display is similar to our 11 pin Arduino 2.2" TFT LCD Display, but for Raspberry Pi! Just wire it up and you'll have a 2.2" Color LCD for your Raspberry Pi to talk to via SPI!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Use this 2.2" Color TFT LCD Display to add a vibrant color display to your Raspberry Pi projects. Just wire up your display and use the SPI protocol to communicate with your TFT. This is more advanced than our Raspberry Pi LCD shields since you have to wire using a breadboard and use the fbtft Raspberry Pi Library when configuring so we recommend it for intermediate users.
Specifications:
- Resolution: 240x320
- Communication Protocol: SPI
- Chipset: ILI9341
- SD Card Slot onboard
- LCD Type: Color TFT
- Pinout:
| Display Pin | Raspberry Pi Pin | Notes |
|---|---|---|
| BL | GPIO18 | |
| SCK | SCLK | |
| MISO | Used by SD-card | |
| MOSI | MOSI | |
| CS | CE0 | Chip Select |
| SDCS | SD Card Chip Select | |
| RST | GPIO25 | |
| D/C | GPIO24 | |
| VIN | 3.3V | |
| GND | GND |
Useful Online Resources: http://marcosgildavid.blogspot.com/2014/02/getting-ili9341-spi-screen-working-on.html
For Arduino users, this display is also Arduino compatible however we recommend our 11 Pin 2.2" TFT LCD Display which can be plugged directly into an Arduino UNO or Mega so you don't have to use a breadboard.
