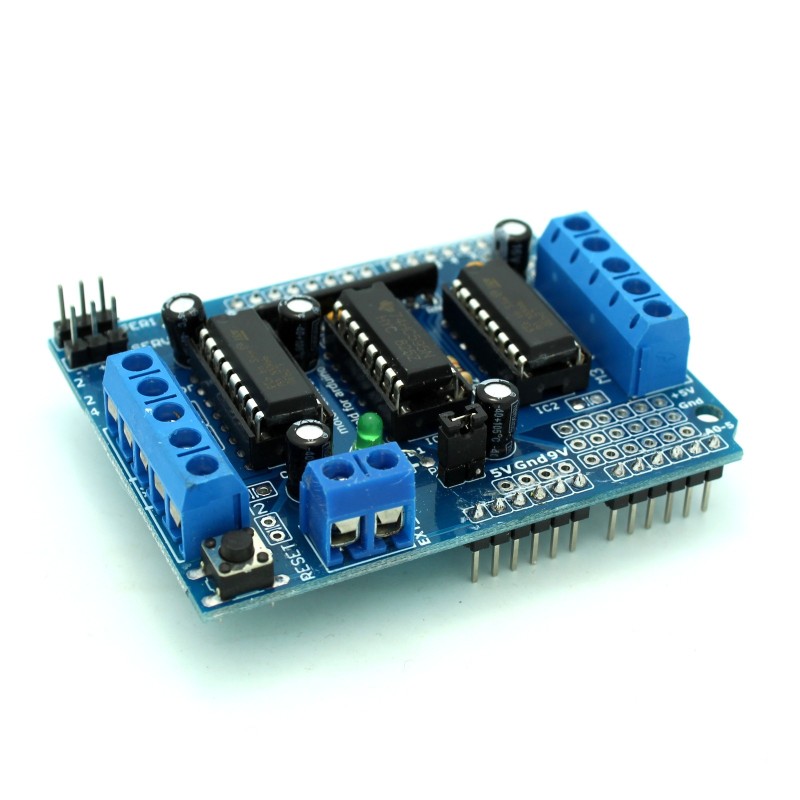

Assembled Motor Shield for Arduino
$19.90
✅SHIPS TODAY
This Assembled Motor Shield lets you control 4 DC Motors, 2 Stepper Motors, and 2 Servo Motors using your Arduino. Pre-assembled so no soldering is required.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Place this Assembled Motor Shield on top of your Arduino to control up to 4 Bi-directional DC motors, 2 Stepper Motors(unipolar or bipolar) and 2 Servo Motors from your Arduino. Just place the shield on top, connect the motor wires into the onboard wire terminals at the edges of the board.
Specifications:
- Motor Voltage: 4.5V - 25V
- Main Chipset: L293D
- Total number of bridges: 4 (2 per chip x 2 chips)
- Max Continuous Current per bridge: 0.6A
- Max Peak Current per bridge: 1.2A
- Features thermal shutdown & protection diodes.
- Arduino Reset Button rerouted to the top of the shield for easy access
- Dimensions: 2.7 in × 2.1 in (68.6 mm × 53.3 mm)
- Wire Terminals: 18AWG - 26AWG
- Arduino pins that are available / not occupied by motor shield:
- Analog A0 to A5
- Digital D2, D13
- Arduino pins used by the motor shield:
- D11: DC Motor 1 / Stepper 1
- D3: DC Motor 2 / Stepper 1
- D5: DC Motor 3 / Stepper 2
- D6: DC Motor 4 / Stepper 2
- D4, D7, D8 & D12: Latch chip (in use when using DC or stepper motors)
- D9: Servo 1
- D10: Servo 2
Click here to download the L293D H-Bridge datasheet.
Click here to download the Arduino Sample Code for this Motor Shield.
